FLS2100XS - onsemi

Description: Protection Functions: Over-Voltage Protection (OVP),Over-Current Protection (OCP), Abnormal Over-Current Protection (AOCP), Internal Thermal Shutdown (TSD); High Efficiency through Zero Voltage Switching (ZVS); Variable Frequency Control with 50% Duty Cycle for Half-Bridge Resonant Converter Topology; Auto-Restart Operation for All Protections withExternal LVCC; Fixed Dead Time (350ns) Optimized for MOSFETs; Up to 300kHz Operating Frequency; Internal UniFET™ with Fast-Recovery Body Diode

Download FLS2100XS Model

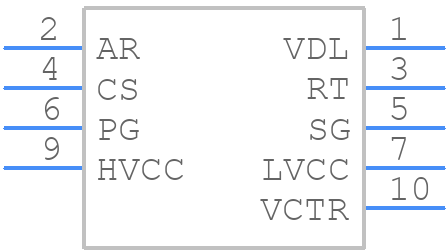

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FLS2100XS - onsemi PCB footprint - Other - Other - SIP9 26x10.5 CASE 127EM ISSUE O
click to zoom
3D Models
FLS2100XS - onsemi  - 3D model - Other - SIP9 26x10.5 CASE 127EM ISSUE O
click to zoom

FLS2100XS Details

  • Manufacturer Part Number:

    FLS2100XS

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SIP-9

  • Package Description:

    SIP-10

  • Manufacturer Package Code:

    127EM

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • High Side Driver:

    YES

  • Input Characteristics:

    GATED SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-XZIP-T10

  • JESD-609 Code:

    e3

  • Length:

    26 mm

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    130 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    STANDARD

  • Output Peak Current Limit-Nom:

    32 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    SIP

  • Package Equivalence Code:

    ZIP9/13,.13,.05

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    14.5 mm

  • Supply Current-Max:

    11 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    ZIG-ZAG

  • Width:

    3.2 mm

FLS2100XS Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output traces short and away from each other to minimize noise coupling.
  • The FLS2100XS requires a bias voltage of 2.5V to 5.5V. Ensure the bias voltage is stable and noise-free, and that the bias pin is decoupled with a 10nF capacitor to ground.
  • The FLS2100XS can handle input signal amplitudes up to 2.5Vpp. Exceeding this may result in distortion and reduced accuracy.
  • Calibration involves adjusting the internal gain and offset registers. Use the onsemi-provided calibration software or follow the calibration procedure outlined in the datasheet.
  • The typical power consumption of the FLS2100XS is 15mA at 3.3V supply voltage. However, this may vary depending on the specific application and operating conditions.
