A good PCB layout for the FLS3247N involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power source. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
To ensure the FLS3247N operates within its SOA, monitor the device's junction temperature, input voltage, and output current. Make sure the device is not exposed to excessive temperatures, and the input voltage and output current are within the recommended specifications.
A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for the input capacitor. The capacitor should be placed close to the device's input pins to minimize noise and ensure stable operation.
To troubleshoot issues with the FLS3247N, start by checking the input voltage, output current, and device temperature. Verify that the device is properly soldered and the PCB layout is correct. Check for any signs of physical damage or contamination. If the issue persists, consult the datasheet and application notes for guidance.
Yes, the FLS3247N is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q100, a standard for automotive-grade ICs. However, ensure that the device is used within its recommended specifications and operating conditions.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FLS3247N Overview

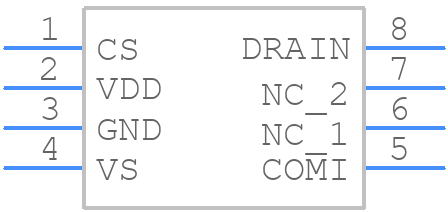

Use the download button to access the FLS3247N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FLS32,
or try a keyword search, such as Display Drivers
