The recommended PCB layout involves placing the DC-DC converter near the input capacitors and output capacitors, with a solid ground plane and minimal thermal resistance. Thermal management involves using a heat sink or thermal pad to keep the junction temperature below 125°C.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the DC-DC converter away from sensitive components, use a common-mode choke, and add EMI filters at the input and output. Also, follow the recommended PCB layout and grounding scheme.
The maximum allowable capacitance for the input capacitor is 220uF, and for the output capacitor, it is 100uF. Exceeding these values may affect the converter's stability and performance.
While the FM05D200P is a high-quality DC-DC converter, it is not specifically designed for high-reliability or aerospace applications. For such applications, consider using a converter with a higher reliability rating, such as MIL-STD-883 or NASA-approved components.
To troubleshoot common issues, check the input voltage, output load, and ambient temperature. Verify the PCB layout and thermal management. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FM05D200P Overview

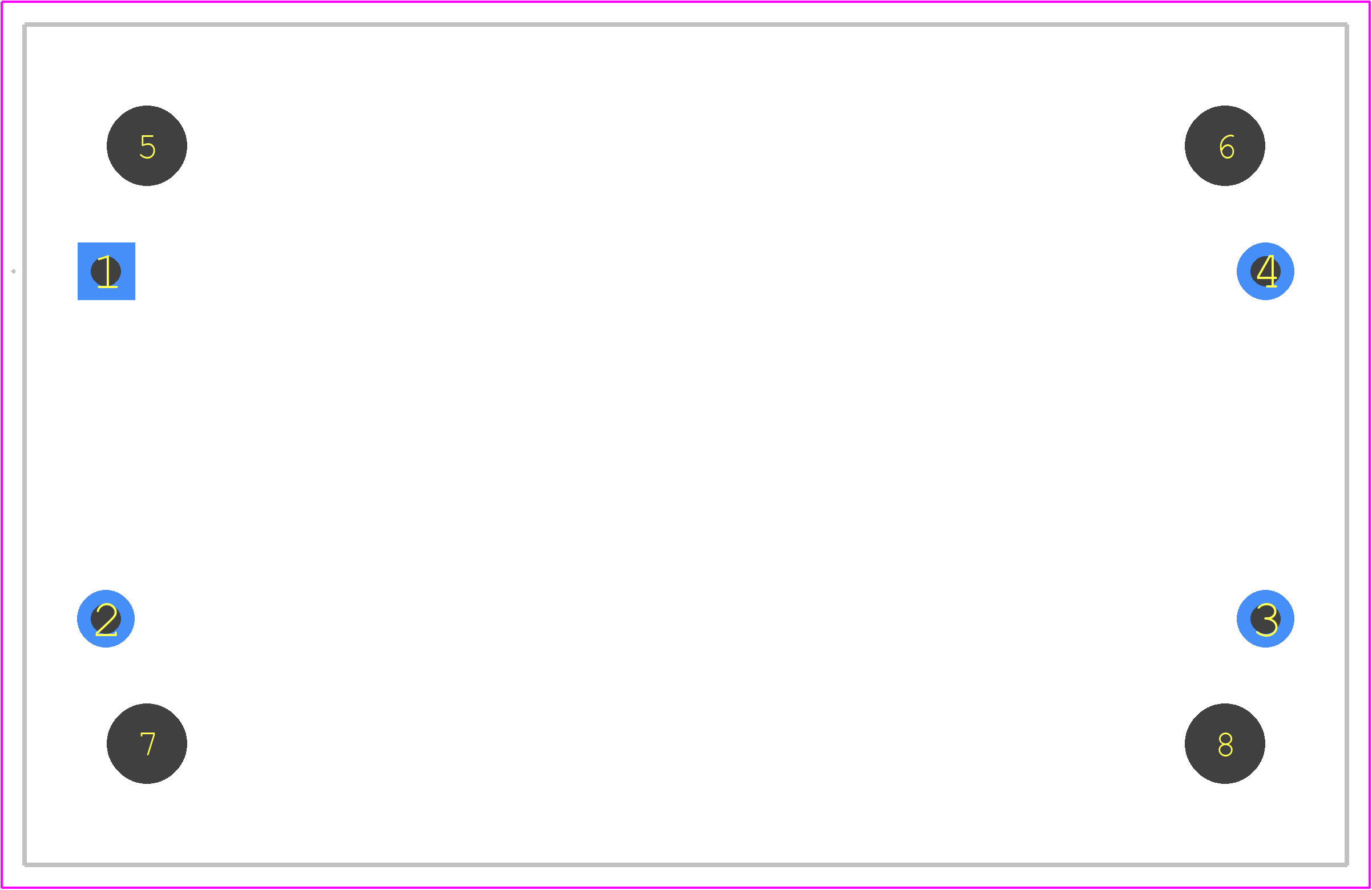

Use the download button to access the FM05D200P schematic symbol, PCB footprint, and 3D model.
