FM10-100 - Cincon

Description: Power Line Filters Filter Module, PCB Mount, 75VDC max. Input, 10A

Download FM10-100 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FM10-100 - Cincon - PCB symbol
click to zoom

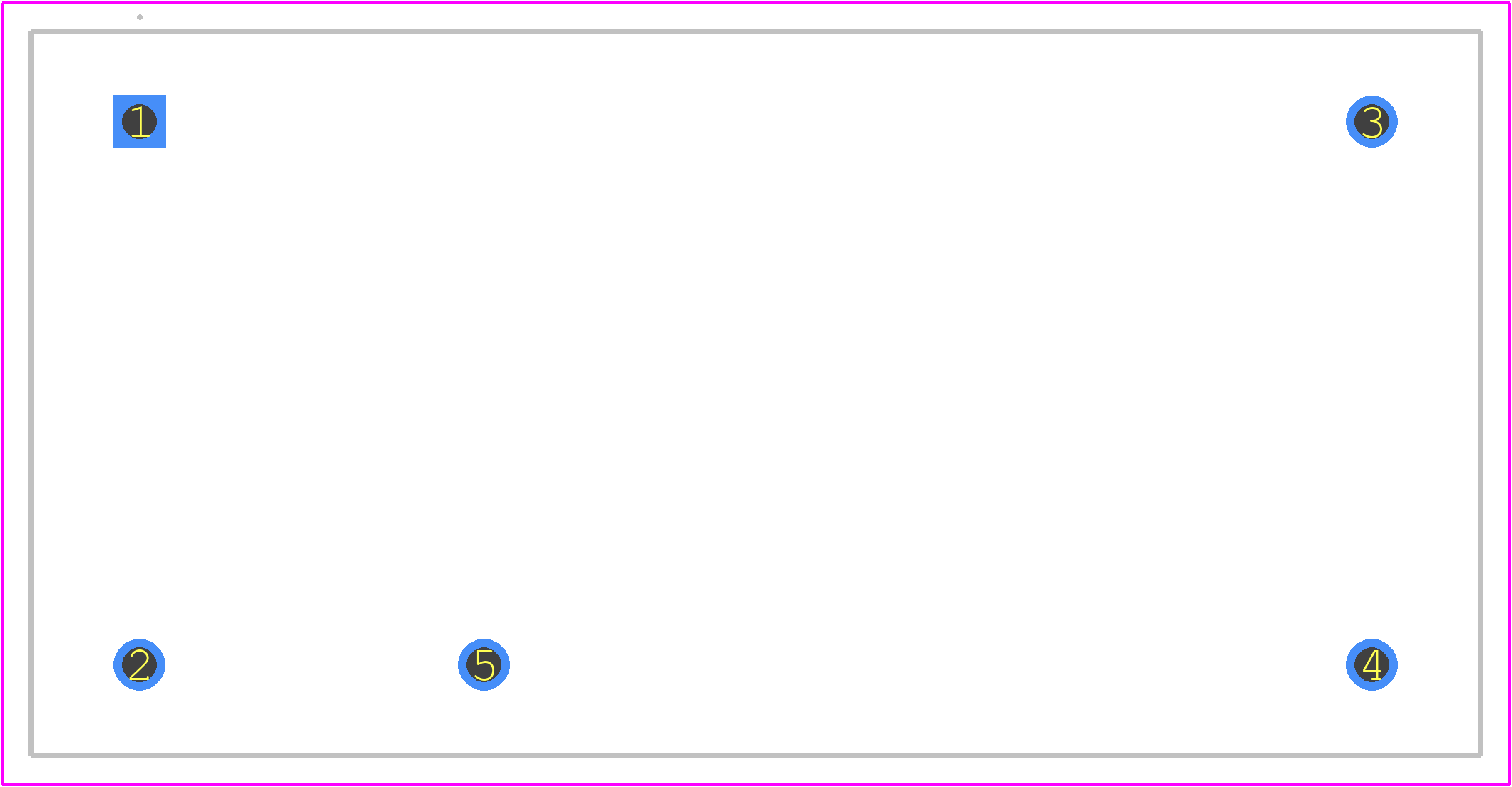

PCB Footprints
FM10-100 - Cincon PCB footprint - Other - Other - FM10-100-2_2025
click to zoom
3D Models
FM10-100 - Cincon - 3D model - Other - FM10-100-2_2025
click to zoom

FM10-100 Details

  • Manufacturer Part Number:

    FM10-100

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • DC Resistance-Max:

    0.0115 Ω

  • Filter Type:

    DATA LINE FILTER MODULE

  • Height:

    11.7 mm

  • Length:

    50.8 mm

  • Mounting Type:

    PCB MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    100 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Material:

    PLASTIC/EPOXY

  • Rated Current:

    10 A

  • Rated Voltage:

    75 V

  • Width:

    25.4 mm

FM10-100 Frequently Asked Questions (FAQs)

  • The FM10-100 can drive a maximum capacitive load of 10uF. Exceeding this value may cause instability or oscillation.
  • Ensure good airflow around the converter, avoid blocking the vents, and keep the ambient temperature within the specified range of -40°C to +85°C.
  • A low-ESR ceramic capacitor with a value of 10uF to 22uF is recommended for input filtering and noise reduction.
  • Yes, the FM10-100 is designed to withstand vibrations up to 10G peak acceleration. However, ensure proper mounting and secure the converter to prevent damage.
  • Check the input voltage, output load, and ambient temperature. Ensure proper input and output filtering, and verify that the converter is operated within its specified parameters.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FM10-100 Overview

Use the download button to access the FM10-100 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FM10-, or try a keyword search, such as Data Line Filters
