FM24C04B-G - Infineon

Description: Serial-2 Wire FRAM Memory 4kbit, 512 x 8 bit, 4.5 -> 5.5 V, -40 -> 85 C, 8-pin, SOIC

Download FM24C04B-G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

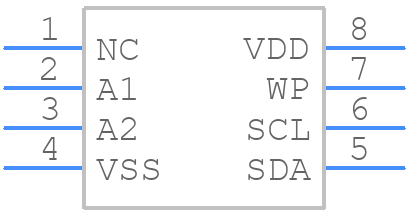

FM24C04B-G - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - FM24C04B-G
click to zoom
3D Models
FM24C04B-G - Infineon  - 3D model - Small Outline Packages - FM24C04B-G
click to zoom

FM24C04B-G Details

  • Manufacturer Part Number:

    FM24C04B-G

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES WITH 0.4 MHZ AND 0.1 MHZ :2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    4096 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    512 words

  • Number of Words Code:

    512

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    512X8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.00001 A

  • Standby Voltage-Min:

    4.5 V

  • Supply Current-Max:

    0.0004 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE

FM24C04B-G Frequently Asked Questions (FAQs)

  • The FM24C04B-G has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The FM24C04B-G uses a page write buffer to handle page writes. The device can write up to 128 bytes of data in a single page write operation.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied to VCC, the device is in write-protect mode, and any attempt to write to the device will be ignored.
  • The FM24C04B-G is designed to operate at a supply voltage of 1.7V to 3.6V. Using the device with a 5V power supply is not recommended and may damage the device.
  • The FM24C04B-G has a built-in power-on reset (POR) circuit that resets the device to its default state when the power supply is turned on.
