Part Image

FM24C16B-GTR - Infineon

Description: CYPRESS SEMICONDUCTOR - FM24C16B-GTR - F-RAM, NON-VOL, 16KBIT, 1MHZ, SOIC-8

Download FM24C16B-GTR Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FM24C16B-GTR model

Email notifications will be applied after download.

Send part feedback

Symbol

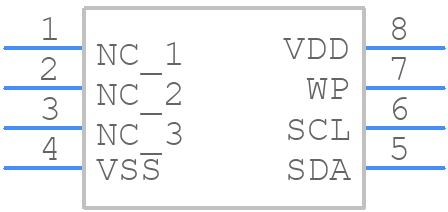

FM24C16B-GTR - Infineon - PCB symbol

PCB Footprints

FM24C16B-GTR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOIC (150 mils) 51-85066

3D Models

FM24C16B-GTR - Infineon - 3D model - Small Outline Packages - 8-PIN SOIC (150 mils) 51-85066

Datasheet Download Datasheet
Stock & Prices Price & Stock for FM24C16B-GTR
Part Number FM24C16B-GTR
Manufacturer Infineon
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-PIN SOIC (150 mils) 51-85066
Released Date Dec 7, 2017
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

FM24C16B-GTR Details

Manufacturer Part Number:
FM24C16B-GTR
Manufacturer:
Infineon Technologies AG

Trust Checks

Community Provided

System Verified

Community Approved

FM24C16B-GTR Overview

Use the download button to access the FM24C16B-GTR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like FM24C, or try a keyword search, such as FRAMs
