ALSO OPERATES WITH 0.4 MHZ AND 0.1 MHZ :2KV ESD AVAILABLE
Clock Frequency-Max (fCLK):
1 MHz
Data Retention Time-Min:
10
Endurance:
100000000000000 Write/Erase Cycles
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.889 mm
Memory Density:
4096 bit
Memory IC Type:
FRAM
Memory Width:
8
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Number of Words:
512 words
Number of Words Code:
512
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
512X8
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.727 mm
Serial Bus Type:
I2C
Standby Current-Max:
0.000006 A
Standby Voltage-Min:
2.7 V
Supply Current-Max:
0.0003 mA
Supply Voltage-Max (Vsup):
3.65 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Pure Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.8985 mm
Write Protection:
HARDWARE
FM24CL04B-GTR Frequently Asked Questions (FAQs)
A good PCB layout for the FM24CL04B-GTR involves keeping the device away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, it's recommended to use a 0.1uF decoupling capacitor between VCC and GND, and to keep the EEPROM's power supply lines (VCC and GND) as short as possible.
To ensure data integrity, it's essential to follow the recommended power-up and power-down sequences outlined in the datasheet. Additionally, consider implementing a power-fail detect circuit to detect power-down events and prevent data corruption. It's also recommended to use a capacitor on the VCC line to filter out noise and ensure a clean power supply.
When writing data to the FM24CL04B-GTR, use the recommended write cycle timing and ensure that the device is not accessed during the write cycle. When reading data, use a pull-up resistor on the SCL line to prevent bus contention, and ensure that the device is properly initialized before accessing the EEPROM. It's also recommended to use a clock frequency within the specified range (100 kHz to 400 kHz) to ensure reliable data transfer.
Implement error detection and correction mechanisms, such as checksums or CRCs, to detect data corruption or transmission errors. Additionally, consider implementing a retry mechanism to handle temporary errors or bus contention. It's also essential to follow the recommended protocol for handling ACK and NACK responses from the device.
The FM24CL04B-GTR is rated for operation from -40°C to 85°C. To ensure reliable operation, ensure that the device is operated within the specified temperature range, and consider using thermal management techniques such as heat sinks or thermal interfaces to dissipate heat. Additionally, follow the recommended PCB layout and thermal design guidelines to minimize thermal gradients and hotspots.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FM24CL04B-GTR Overview

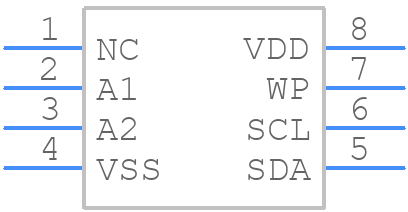

Use the download button to access the FM24CL04B-GTR schematic symbol, PCB footprint, and 3D model.
