ALSO OPERATES WITH 0.4 MHZ AND 0.1 MHZ :2KV ESD AVAILABLE
Clock Frequency-Max (fCLK):
1 MHz
Data Retention Time-Min:
10
Endurance:
100000000000000 Write/Erase Cycles
JESD-30 Code:
R-PDSO-N8
JESD-609 Code:
e3
Length:
4.5 mm
Memory Density:
16384 bit
Memory IC Type:
FRAM
Memory Width:
8
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Number of Words:
2048 words
Number of Words Code:
2000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
2KX8
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.16,37
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.85 mm
Serial Bus Type:
I2C
Standby Current-Max:
0.000006 A
Standby Voltage-Min:
2.7 V
Supply Current-Max:
0.0003 mA
Supply Voltage-Max (Vsup):
3.65 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Pure Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
0.95 mm
Terminal Position:
DUAL
Width:
4 mm
Write Protection:
HARDWARE
FM24CL16B-DG Frequently Asked Questions (FAQs)
The maximum operating frequency of the FM24CL16B-DG is 10 MHz.
To ensure data integrity, use the FM24CL16B-DG's built-in power-down and power-up protection features, such as the VCC rise-time detector and the power-fail detector. Additionally, use a capacitor on the VCC pin to filter out noise and ensure a clean power supply.
The recommended storage temperature range for the FM24CL16B-DG is -65°C to +150°C.
Yes, the FM24CL16B-DG is compatible with 3.3V power supplies. However, ensure that the input voltage is within the recommended operating range of 2.7V to 3.6V.
The HOLD pin is used to pause the serial clock input (SCL) during device operation. To use the HOLD pin, pull it low to pause the clock, and pull it high to resume clock operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FM24CL16B-DG Overview

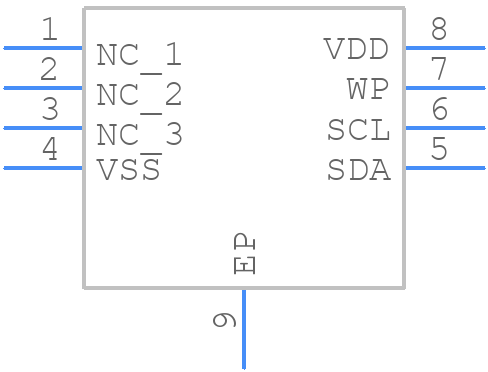

Use the download button to access the FM24CL16B-DG schematic symbol, PCB footprint, and 3D model.
