FM24CL16B-GTR - Infineon

Description: F-RAM 16Kb Serial I2C 3V FRAM

Download FM24CL16B-GTR Model

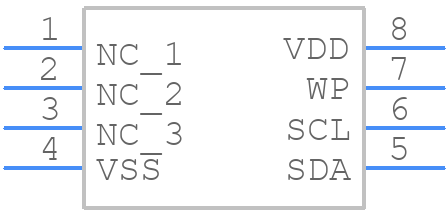

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM24CL16B-GTR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-PIN SOIC (150 mils) Package Outline51-85066
click to zoom
3D Models
FM24CL16B-GTR - Infineon  - 3D model - Small Outline Packages - 8-PIN SOIC (150 mils) Package Outline51-85066
click to zoom

FM24CL16B-GTR Details

  • Manufacturer Part Number:

    FM24CL16B-GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Similar Group:

    ME04104810171165100610031002

  • Country Of Origin:

    Taiwan, Thailand

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES WITH 0.4 MHZ AND 0.1 MHZ :2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    1 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    16384 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2048 words

  • Number of Words Code:

    2000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.000006 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.0003 mA

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE

FM24CL16B-GTR Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the FM24CL16B-GTR is 10 MHz.
  • To ensure data integrity, use the FM24CL16B-GTR's built-in power-down protection feature, which automatically saves data to non-volatile memory during power-down cycles. Additionally, use a capacitor on the VCC pin to filter out power noise and ensure a clean power supply.
  • The recommended storage temperature range for the FM24CL16B-GTR is -40°C to +125°C.
  • Yes, the FM24CL16B-GTR is designed to operate in a wide range of humidity levels, from 5% to 95% relative humidity. However, it's recommended to follow proper PCB design and assembly guidelines to prevent moisture-related issues.
  • In the event of a bus conflict or arbitration, the FM24CL16B-GTR's I2C bus will automatically retry the transaction. If the conflict persists, the device will enter a bus-hold state, and the master device should retry the transaction after a short delay.
