FM24V02A-GTR - Infineon

Description: 256-Kbit ferroelectric random access memory (F-RAM) logically organized as 32K × 8 ❐ High-endurance 100 trillion (1014) read/writes ❐ 151-year data retention (See the Data Retention and Endurance table) ❐ NoDelay™ writes ❐ Advanced high-reliability ferroelectric process ■ Fast two-wire serial interface (I2C) ❐ Up to 3.4-MHz frequency[1] ❐ Direct hardware replacement for serial EEPROM ❐ Supports legacy timings for 100 kHz and 400 kHz ■ Device ID ❐ Manufacturer ID and Product ID ■ Low power consu

Download FM24V02A-GTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

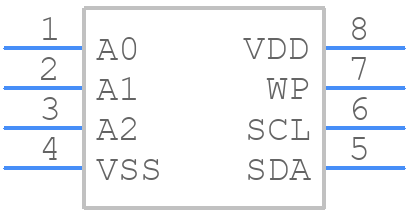

Symbol
FM24V02A-GTR - Infineon - PCB symbol
click to zoom
PCB Footprints
FM24V02A-GTR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC*
click to zoom
3D Models
FM24V02A-GTR - Infineon - 3D model - Small Outline Packages - 8-pin SOIC*
click to zoom

FM24V02A-GTR Details

  • Manufacturer Part Number:

    FM24V02A-GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    also operates with 1 MHZ ; 2KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    3.4 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    I2C

  • Standby Current-Max:

    0.00015 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.001 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE

FM24V02A-GTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the FM24V02A-GTR involves placing the device close to the battery, using a solid ground plane, and minimizing the length of the VCC and GND traces. Additionally, it's recommended to use a 10uF capacitor between VCC and GND to filter out noise.
  • The FM24V02A-GTR has a built-in POR and BOR circuitry. To handle POR, ensure that the power supply is stable before accessing the device. For BOR, use a voltage supervisor or a reset IC to monitor the power supply and reset the system if it falls below a certain threshold.
  • The FM24V02A-GTR can operate at clock frequencies up to 1 MHz. However, the recommended frequency is 400 kHz to ensure optimal performance and minimize power consumption.
  • To ensure data integrity, use the built-in error correction code (ECC) feature, and implement a checksum or CRC in your firmware to detect data corruption. Additionally, use a robust communication protocol and implement retries and timeouts to handle transmission errors.
  • The FM24V02A-GTR has a minimum of 1 million write cycles per page, and a total of 100,000 erase cycles. It's recommended to implement wear leveling and garbage collection in your firmware to minimize wear and extend the device's lifespan.
