FM25CL64B-DG - Infineon

Description: 64Kbit F-RAM Memory 8Kx8 SPI 3V TDFN8

Download FM25CL64B-DG Model

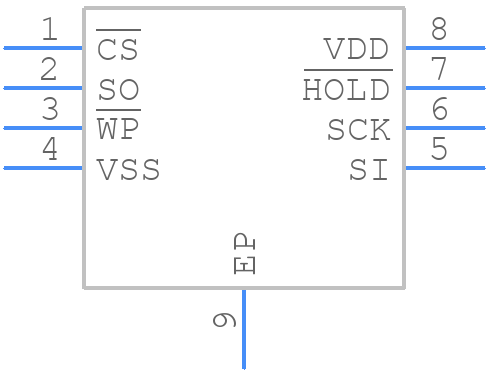

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25CL64B-DG - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN
click to zoom
3D Models
FM25CL64B-DG - Infineon  - 3D model - Small Outline No-lead - DFN
click to zoom

FM25CL64B-DG Details

  • Manufacturer Part Number:

    FM25CL64B-DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    20 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Memory Density:

    65536 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8192 words

  • Number of Words Code:

    8000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000006 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    3.65 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • Write Protection:

    HARDWARE/SOFTWARE

FM25CL64B-DG Frequently Asked Questions (FAQs)

  • The FM25CL64B-DG has a minimum of 1 million write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The FM25CL64B-DG has a built-in power-fail detection and write protection circuitry that prevents data corruption in the event of a power failure during a write operation.
  • The recommended storage temperature range for the FM25CL64B-DG is -40°C to +125°C, but it's recommended to store the device in a dry, cool place away from direct sunlight and moisture.
  • Yes, the FM25CL64B-DG is AEC-Q100 qualified, making it suitable for use in automotive applications, but it's recommended to consult with Infineon's automotive support team for specific requirements and validation.
  • The FM25CL64B-DG has built-in electrostatic discharge (ESD) protection circuitry that protects the device from ESD events up to ±4 kV, but it's still recommended to follow proper ESD handling procedures during handling and assembly.
