FM25V02A-DG - Infineon

Description: Cypress Semiconductor FM25V02A-DG SPI FRAM Memory, 256kbit, 2 → 3.6 V 8-Pin DFN

Download FM25V02A-DG Model

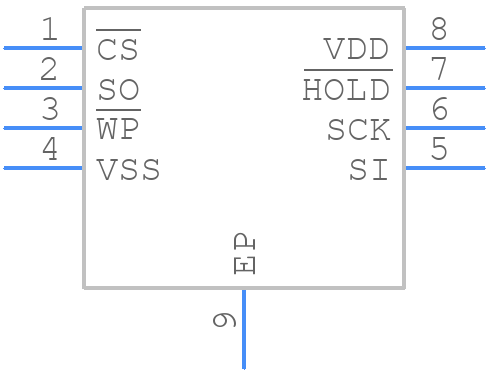

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25V02A-DG - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - FM25V02A-DG
click to zoom
3D Models
FM25V02A-DG - Infineon  - 3D model - Small Outline No-lead - FM25V02A-DG
click to zoom

FM25V02A-DG Details

  • Manufacturer Part Number:

    FM25V02A-DG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.2,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00015 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • Write Protection:

    HARDWARE

FM25V02A-DG Frequently Asked Questions (FAQs)

  • The FM25V02A-DG has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The FM25V02A-DG uses a page-based write architecture, where data is written in pages of 256 bytes. The device also supports block erase, where a block of 4KB can be erased at once.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in a write-protected state, and any write attempts will be ignored.
  • Yes, the FM25V02A-DG can be used in a multi-master SPI bus configuration, but it requires careful consideration of the bus arbitration and collision avoidance mechanisms to ensure reliable operation.
  • The recommended operating voltage range for the FM25V02A-DG is 2.7V to 3.6V, but it can operate down to 2.3V with reduced performance and reliability.
