FM25V02A-DGQTR - Infineon

Description: FRAM 256Kbit Serial-SPI Interface 3.3V 8-Pin DFN EP T/R

Download FM25V02A-DGQTR Model

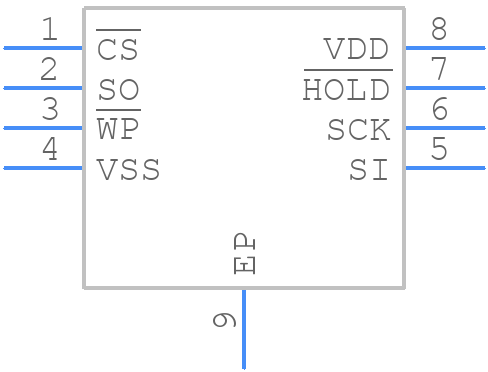

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25V02A-DGQTR - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin DFN (4.0 × 4.5 × 0.8 mm) Package Outline, 001-85260
click to zoom
3D Models
FM25V02A-DGQTR - Infineon  - 3D model - Small Outline No-lead - 8-pin DFN (4.0 × 4.5 × 0.8 mm) Package Outline, 001-85260
click to zoom

FM25V02A-DGQTR Details

  • Manufacturer Part Number:

    FM25V02A-DGQTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    2kv ESD available

  • Clock Frequency-Max (fCLK):

    33 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    10000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.16,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.0005 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.005 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • Write Protection:

    HARDWARE/SOFTWARE

FM25V02A-DGQTR Frequently Asked Questions (FAQs)

  • The FM25V02A-DGQTR has a minimum of 100,000 write cycles per sector, and a total of 1,000,000 write cycles for the entire device.
  • The FM25V02A-DGQTR uses a page write buffer to handle page writes. The buffer is 256 bytes, and the device can perform a page write in 1.5 ms (typical) or 3 ms (maximum).
  • The WP (Write Protect) pin is used to prevent writes to the status register and the memory array. When the WP pin is low, the device is in write-protect mode, and when it is high, the device is in normal operation mode.
  • The FM25V02A-DGQTR has a built-in power-up and power-down reset circuit that ensures the device is in a known state after power-up or power-down. The device also has a low-voltage detector that prevents writes to the memory array during power-up or power-down.
  • The FM25V02A-DGQTR has an operating temperature range of -40°C to +85°C, making it suitable for use in a wide range of applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FM25V02A-DGQTR Overview

Use the download button to access the FM25V02A-DGQTR schematic symbol, PCB footprint, and 3D model.
