FM25V02A-DGTR - Infineon

Description: F-RAM NVRAM FRAM Memory Serial

Download FM25V02A-DGTR Model

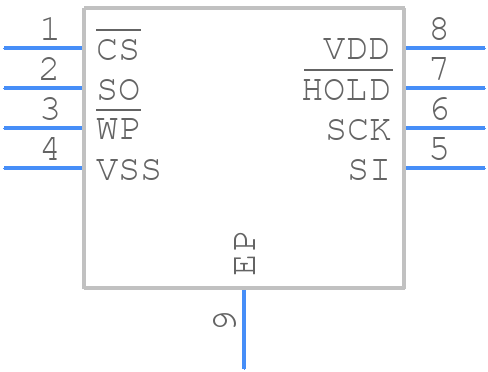

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25V02A-DGTR - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-pin DFN (4.0 mm × 4.5 mm × 0.8 mm)
click to zoom
3D Models
FM25V02A-DGTR - Infineon  - 3D model - Small Outline No-lead - 8-pin DFN (4.0 mm × 4.5 mm × 0.8 mm)
click to zoom

FM25V02A-DGTR Details

  • Manufacturer Part Number:

    FM25V02A-DGTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    4.5 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.2,25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00015 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.0025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • Write Protection:

    HARDWARE

FM25V02A-DGTR Frequently Asked Questions (FAQs)

  • The FM25V02A-DGTR has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
  • The FM25V02A-DGTR has a built-in power-fail detection and write protection circuitry that prevents data corruption in the event of a power failure during a write operation.
  • The recommended operating temperature range for the FM25V02A-DGTR is -40°C to +85°C, but it can operate up to +105°C with reduced performance and reliability.
  • The FM25V02A-DGTR has a maximum clock frequency of 20 MHz, which may not be suitable for high-speed data transfer applications. However, it is suitable for low-to-medium speed applications such as IoT devices, industrial control systems, and consumer electronics.
  • The FM25V02A-DGTR is a 2.5V device, but it is compatible with 5V and 3.3V systems with proper voltage translation and level shifting.
