Part Image

FM25V10-GTR - Infineon

Description: F-RAM 1M (128Kx8) 2.0-3.6V F-RAM

Download FM25V10-GTR Model

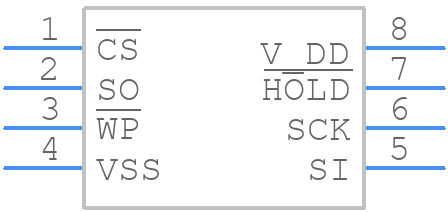

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FM25V10-GTR - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 8-pin SOIC
click to zoom
3D Models
FM25V10-GTR - Infineon  - 3D model - Small Outline Packages - 8-pin SOIC
click to zoom

FM25V10-GTR Details

  • Manufacturer Part Number:

    FM25V10-GTR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    8

  • Additional Feature:

    ALSO OPERATES AT 25MHZ FROM 2.0-2.7V SUPPLY AND 4KV ESD AVAILABLE

  • Clock Frequency-Max (fCLK):

    40 MHz

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.889 mm

  • Memory Density:

    1048576 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    131072 words

  • Number of Words Code:

    128000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.727 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00015 A

  • Standby Voltage-Min:

    2.7 V

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.8985 mm

  • Write Protection:

    HARDWARE/SOFTWARE

FM25V10-GTR Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the FM25V10-GTR is 2.7V to 3.6V.
  • To ensure data retention, the device should be powered down correctly, and the VCC pin should be brought down to 0V before removing power. Additionally, the device should not be exposed to extreme temperatures or radiation.
  • The maximum clock frequency for the FM25V10-GTR is 20 MHz.
  • Page writes and block erases should be performed using the correct command sequences and timing, as specified in the datasheet. It is also important to ensure that the device is properly initialized and configured before performing these operations.
  • The WP (Write Protect) pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in write-protect mode, and all write operations are inhibited.
