ALSO OPERATES AT 25MHZ FROM 2.0-2.7V SUPPLY AND 2KV ESD AVAILABLE
Clock Frequency-Max (fCLK):
40 MHz
Data Retention Time-Min:
10
Endurance:
100000000000000 Write/Erase Cycles
JESD-30 Code:
R-XDSO-N8
JESD-609 Code:
e3
Length:
6 mm
Memory Density:
2097152 bit
Memory IC Type:
FRAM
Memory Width:
8
Moisture Sensitivity Level:
3
Number of Functions:
1
Number of Terminals:
8
Number of Words:
262144 words
Number of Words Code:
256000
Operating Mode:
SYNCHRONOUS
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Organization:
256KX8
Package Body Material:
UNSPECIFIED
Package Code:
HVSON
Package Equivalence Code:
SOLCC8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Parallel/Serial:
SERIAL
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Serial Bus Type:
SPI
Standby Current-Max:
0.00025 A
Standby Voltage-Min:
2.7 V
Supply Current-Max:
0.003 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
2.7 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
5 mm
Write Protection:
HARDWARE/SOFTWARE
FM25V20A-DG Frequently Asked Questions (FAQs)
The FM25V20A-DG has a minimum of 100,000 write cycles, but the actual number of write cycles may vary depending on the usage and operating conditions.
The FM25V20A-DG has a built-in power-fail detection and write protection circuitry that prevents data corruption in the event of a power failure during a write operation.
The recommended storage temperature range for the FM25V20A-DG is -40°C to +125°C, but it's recommended to store the device in a cool, dry place away from direct sunlight.
Yes, the FM25V20A-DG is AEC-Q100 qualified, making it suitable for use in automotive applications.
The FM25V20A-DG has built-in electrostatic discharge (ESD) protection, which can withstand up to 4 kV of ESD according to the Human Body Model (HBM).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FM25V20A-DG Overview

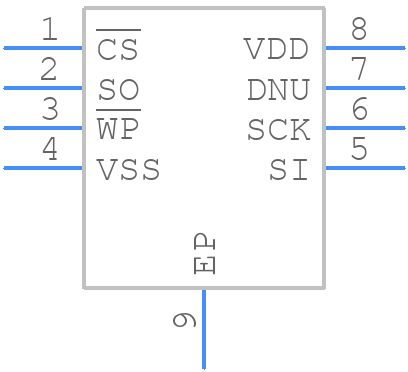

Use the download button to access the FM25V20A-DG schematic symbol, PCB footprint, and 3D model.
