FM28V020-SG - Infineon

Description: FM28V020-SG Parallel FRAM Memory, 256kbit, 70ns, 2 → 3.6 V 28-Pin SOIC

Download FM28V020-SG Model

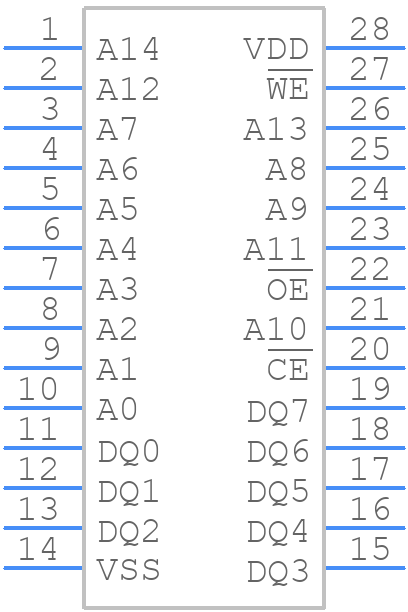

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

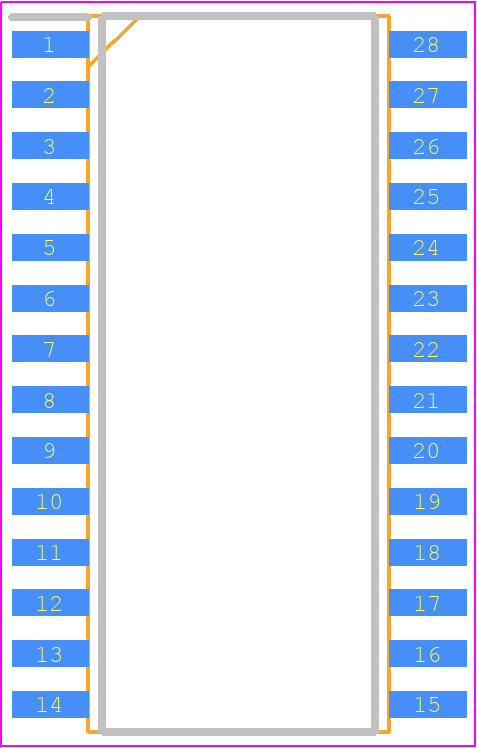

FM28V020-SG - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 28 pin SOIC S21
click to zoom
3D Models
FM28V020-SG - Infineon  - 3D model - Small Outline Packages - 28 pin SOIC S21
click to zoom

FM28V020-SG Details

  • Manufacturer Part Number:

    FM28V020-SG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    4.6

  • Access Time-Max:

    140 ns

  • Additional Feature:

    DATA RETENTION TIME @ 85 DEGREE CENTIGRADE

  • Data Retention Time-Min:

    10

  • Endurance:

    100000000000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e3

  • Length:

    17.905 mm

  • Memory Density:

    262144 bit

  • Memory IC Type:

    FRAM

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Number of Words:

    32768 words

  • Number of Words Code:

    32000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32KX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP28,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    PARALLEL

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    2.67 mm

  • Standby Current-Max:

    0.00015 A

  • Standby Voltage-Min:

    2 V

  • Supply Current-Max:

    0.008 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Pure Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.505 mm

FM28V020-SG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the FM28V020-SG is 2.7V to 3.6V.
  • To ensure data retention during power-down, the VCC pin should be decoupled from the system power supply, and the WP pin should be tied to VCC or left floating.
  • The FM28V020-SG supports a maximum clock frequency of 20 MHz.
  • Page erase and block erase operations can be performed using the respective commands and protocols specified in the datasheet. It is essential to follow the recommended erase procedures to avoid data corruption.
  • The FM28V020-SG has a maximum operating temperature range of -40°C to 85°C. Ensure proper thermal management by providing adequate heat dissipation and avoiding exposure to extreme temperatures.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FM28V020-SG Overview

Use the download button to access the FM28V020-SG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FM28V, or try a keyword search, such as FRAMs
