FMPT-04-01-L-S-V-LC footprint, schematic symbol and 3D model by SAMTEC

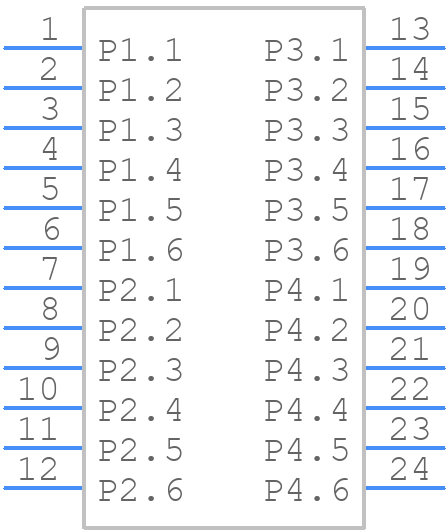

Symbol

click to zoom

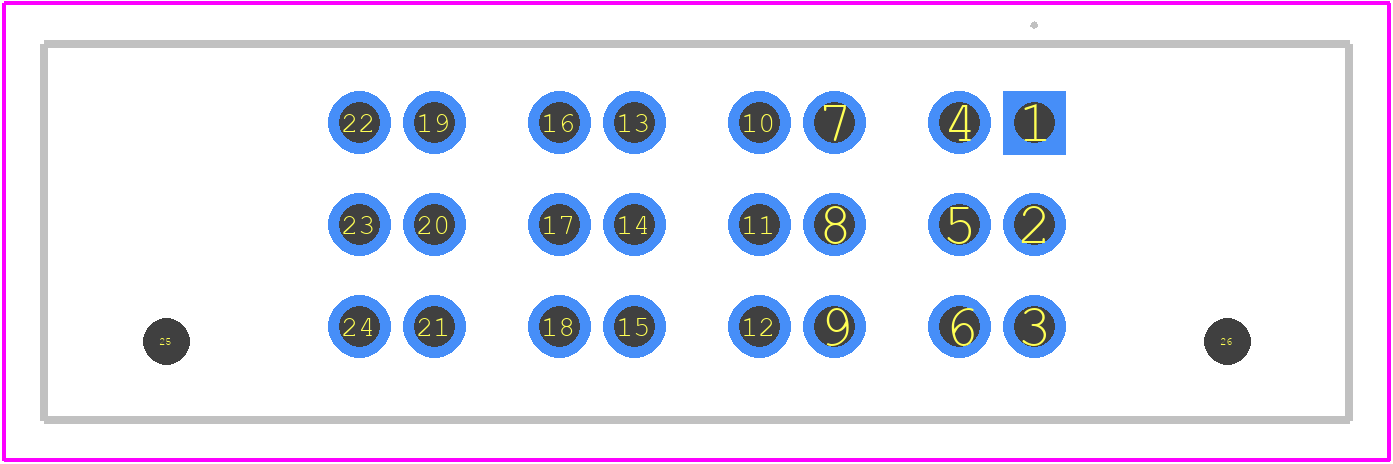

PCB Footprints

FMPT-04-01-L-S-V-LC - SAMTEC PCB footprint - Other - Other - FMPT-04-01-L-S-V-LC-4

click to zoom

3D Models

FMPT-04-01-L-S-V-LC - SAMTEC - 3D model - Other - FMPT-04-01-L-S-V-LC-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FMPT-04-01-L-S-V-LC
Part Number FMPT-04-01-L-S-V-LC
Manufacturer SAMTEC
Pin Count 24
Part Category Connector
Package Category Other
Footprint Name Other - FMPT-04-01-L-S-V-LC-4
Released Date Sep 21, 2025
Last Modified Date Sep 21, 2025 5:31 AM UTC
Pinout / Pin List Click Here (Member Only)

FMPT-04-01-L-S-V-LC Details

Manufacturer Part Number:
FMPT-04-01-L-S-V-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
4 Weeks
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):30A
Body Breadth:
0.365 inch
Body Depth:
0.558 inch
Body Length:
1.285 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
MATTE TIN OVER NICKEL
Contact Finish Termination:
Matte Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Contact Style:
BLADE PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
4

FMPT-04-01-L-S-V-LC Frequently Asked Questions (FAQs)

The recommended mating sequence for FMPT-04-01-L-S-V-LC is to mate the guide pins first, followed by the signal pins, to ensure proper alignment and prevent damage to the connector.
Yes, the FMPT-04-01-L-S-V-LC is designed for high-speed applications up to 10 Gbps, but it's essential to follow proper PCB design and layout guidelines to minimize signal degradation and ensure reliable performance.
The FMPT-04-01-L-S-V-LC has an operating temperature range of -40°C to +125°C, making it suitable for most industrial and commercial applications.
Yes, the FMPT-04-01-L-S-V-LC is designed for automated assembly and can be easily integrated into pick-and-place machines and other automated manufacturing systems.
The recommended torque for the screw locks on the FMPT-04-01-L-S-V-LC is 0.5-1.5 N·m (4-12 in·lb), but it's essential to follow the specific torque recommendations provided by Samtec Inc or consult with their technical support team.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FMPT-04-01-L-S-V-LC Overview

Use the download button to access the FMPT-04-01-L-S-V-LC schematic symbol, PCB footprint, and 3D model.
