FMPT-08-01-L-S-V footprint, schematic symbol and 3D model by SAMTEC

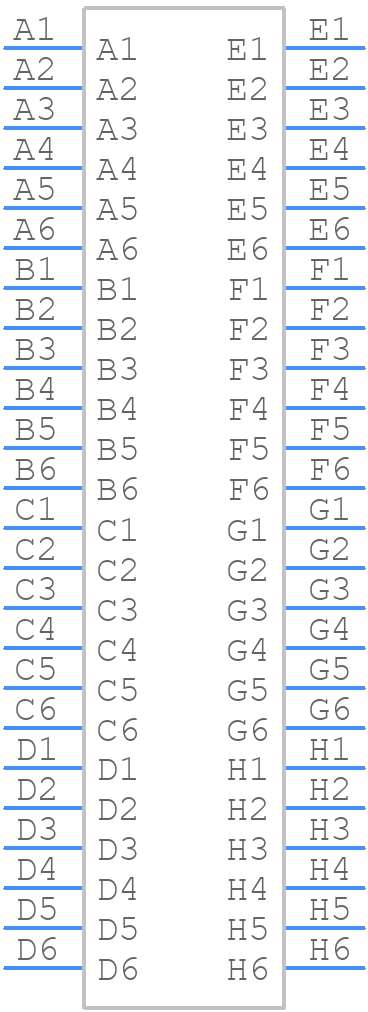

Symbol

click to zoom

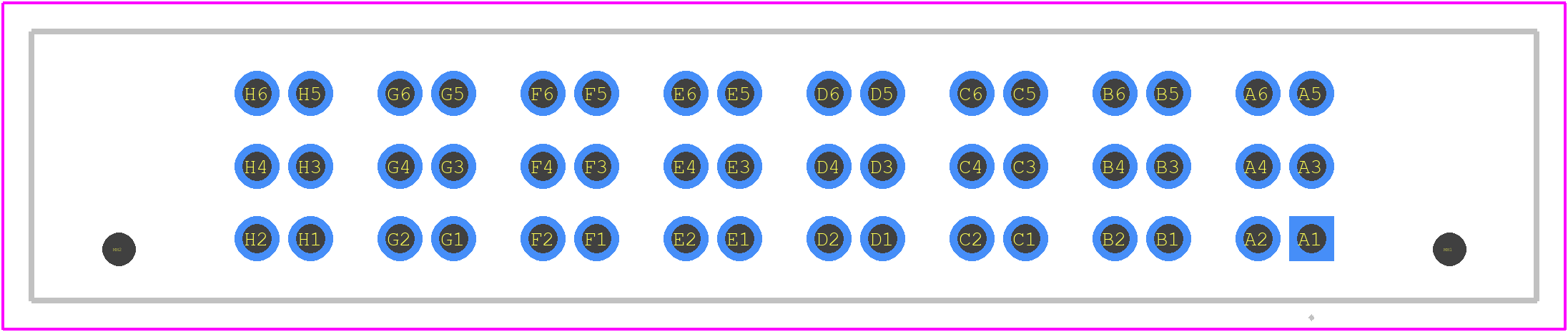

PCB Footprints

FMPT-08-01-L-S-V - SAMTEC PCB footprint - Other - Other - FMPT-08-01-L-S-V-4

click to zoom

3D Models

FMPT-08-01-L-S-V - SAMTEC - 3D model - Other - FMPT-08-01-L-S-V-4

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FMPT-08-01-L-S-V
Part Number FMPT-08-01-L-S-V
Manufacturer SAMTEC
Pin Count 48
Part Category Connector
Package Category Other
Footprint Name Other - FMPT-08-01-L-S-V-4
Released Date Apr 21, 2023
Last Modified Date Apr 21, 2023 8:22 AM UTC
Pinout / Pin List Click Here (Member Only)

FMPT-08-01-L-S-V Details

Manufacturer Part Number:
FMPT-08-01-L-S-V
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, USA
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
8
Additional Feature:
RATED CURRENT(POWER):30A
Body Breadth:
0.365 inch
Body Depth:
0.558 inch
Body Length:
2.072 inch
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
GOLD (10) OVER NICKEL (50)
Contact Gender:
FEMALE
Contact Style:
BLADE PIN-SKT
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
LIQUID CRYSTAL POLYMER
MIL Conformance:
NO
Mating Information:
MULTIPLAE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
8

FMPT-08-01-L-S-V Frequently Asked Questions (FAQs)

The recommended mating sequence is to mate the contacts first, followed by the housing. This ensures proper alignment and prevents damage to the contacts.
Yes, the FMPT-08-01-L-S-V connector is designed to withstand high-vibration environments. However, it's recommended to follow Samtec's guidelines for vibration testing and to ensure proper mounting and strain relief to prevent damage.
The maximum operating temperature for the FMPT-08-01-L-S-V connector is 125°C. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures to ensure reliable operation.
The FMPT-08-01-L-S-V connector is not designed for use in humid or wet environments. If exposure to moisture is unavoidable, it's recommended to use a connector with a higher IP rating or to apply a conformal coating to protect the connector.
The recommended torque for the FMPT-08-01-L-S-V connector's screws is 0.5-1.5 N·m (4-12 in·lb). Over-torquing can damage the connector or the PCB, while under-torquing can lead to poor connections.
