FMS006-3810-0 - Yamaichi

Description: Memory Card Connectors REVERSE MOUNT SIM CARD TRAY

Download FMS006-3810-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

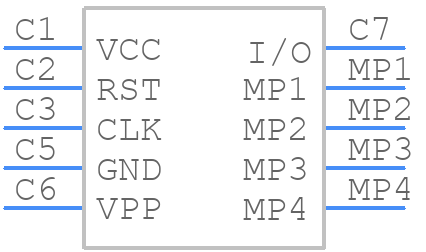

FMS006-3810-0 - Yamaichi - PCB symbol
click to zoom
PCB Footprints

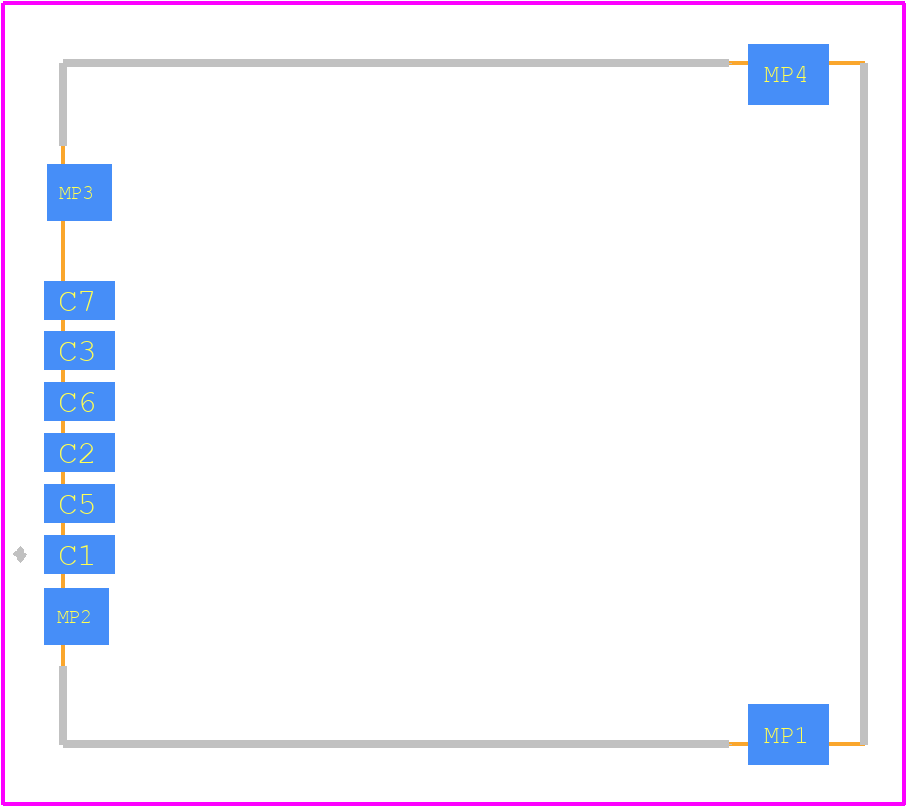

FMS006-3810-0 - Yamaichi PCB footprint - Other - Other - FMS006-3810-0-2
click to zoom
3D Models
FMS006-3810-0 - Yamaichi - 3D model - Other - FMS006-3810-0-2
click to zoom

FMS006-3810-0 Details

  • Manufacturer Part Number:

    FMS006-3810-0

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • Body Breadth:

    0.065 inch

  • Body Depth:

    0.787 inch

  • Body Length:

    0.669 inch

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    AU

  • Contact Gender:

    MALE

  • Contact Material:

    COPPER ALLOY

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Dielectric Withstanding Voltage:

    350VAC V

  • Durability:

    5000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    500000000 Ω

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    6

FMS006-3810-0 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal contacts. This ensures proper alignment and prevents damage to the connector.
  • Yes, FMS006-3810-0 connectors are designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
  • The maximum operating temperature range for FMS006-3810-0 connectors is -40°C to 125°C. However, it's recommended to consult the datasheet for specific temperature ratings for your application.
  • Yes, FMS006-3810-0 connectors are compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and temperature guidelines to ensure reliable connections.
  • The recommended cleaning process for FMS006-3810-0 connectors involves using a soft brush and a mild detergent solution. Avoid using harsh chemicals or abrasive materials that can damage the connector's surface.
