FMS006Z-2101-0 footprint, schematic symbol and 3D model by Yamaichi

Symbol

click to zoom

PCB Footprints

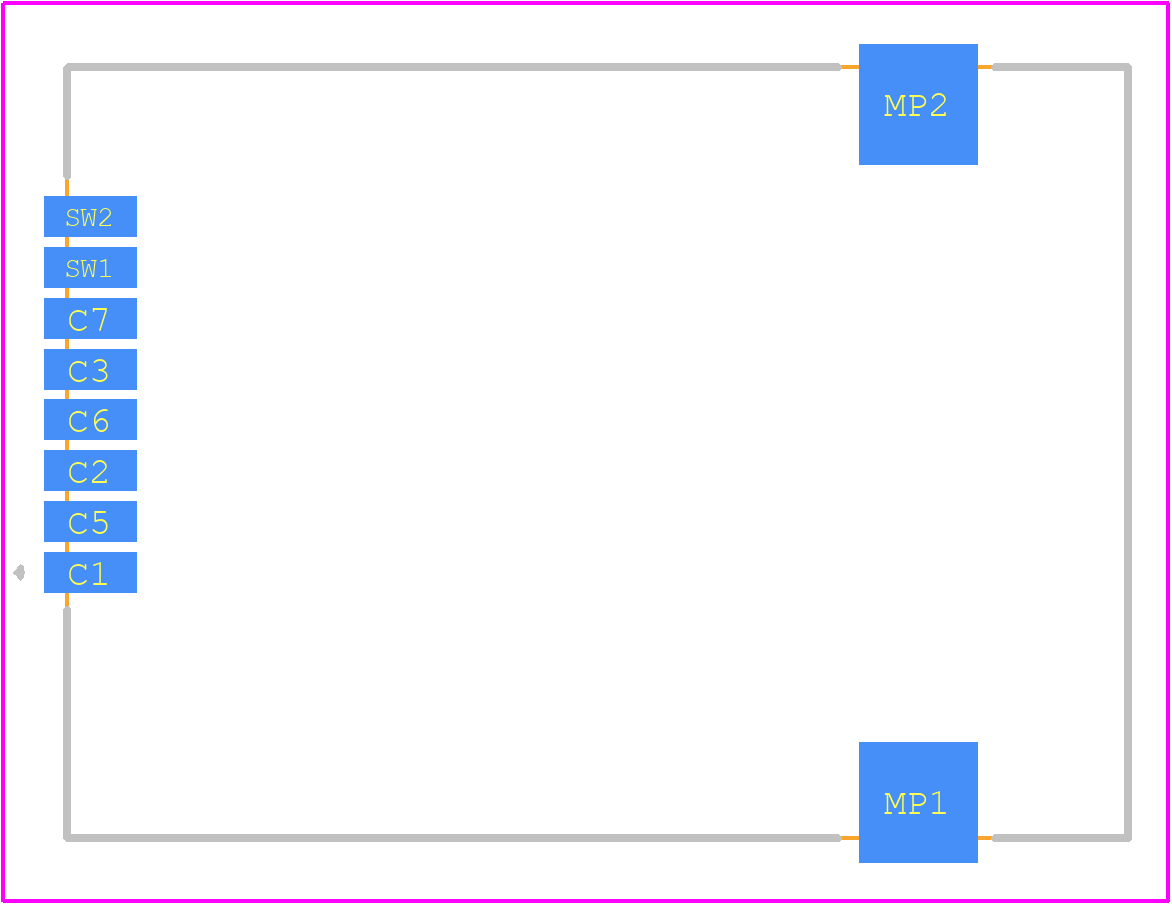

FMS006Z-2101-0 - Yamaichi PCB footprint - Other - Other - FMS006Z-2101-0-3

click to zoom

3D Models

FMS006Z-2101-0 - Yamaichi - 3D model - Other - FMS006Z-2101-0-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FMS006Z-2101-0
Part Number FMS006Z-2101-0
Manufacturer Yamaichi
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - FMS006Z-2101-0-3
Released Date Jul 20, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FMS006Z-2101-0 Details

Manufacturer Part Number:
FMS006Z-2101-0
Part Life Cycle Code:
Contact Manufacturer
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Yamaichi Electronics Co Ltd
YTEOL:
2
Body Breadth:
0.094 inch
Body Depth:
1.043 inch
Body Length:
0.821 inch
Connector Type:
PCB CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
STAGGERED
Contact Resistance:
100 mΩ
Contact Style:
BELLOWED TYPE
Dielectric Withstanding Voltage:
354VAC V
Durability:
5000 Cycles
Filter Feature:
NO
Insulation Resistance:
500000000 Ω
Insulator Material:
GLASS FILLED LIQUID CRYSTAL POLYMER
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
6
UL Flammability Code:
94V-0

FMS006Z-2101-0 Frequently Asked Questions (FAQs)

The recommended mating cycle for FMS006Z-2101-0 is 500 cycles, but it's essential to consult with Yamaichi Electronics Co Ltd or a qualified distributor for specific guidance on the mating cycle and its impact on the connector's lifespan.
While FMS006Z-2101-0 is designed to be robust, it's crucial to evaluate the specific vibration requirements of your application. Yamaichi Electronics Co Ltd recommends consulting their application notes or contacting their technical support to determine the connector's suitability for high-vibration environments.
The recommended torque for the screw locks on FMS006Z-2101-0 is typically between 0.5 N·m to 1.5 N·m. However, it's essential to consult the datasheet or Yamaichi Electronics Co Ltd's documentation for specific guidance on torque values to ensure proper connection and avoid damage.
Yes, FMS006Z-2101-0 is designed to be compatible with lead-free soldering processes. However, it's crucial to follow Yamaichi Electronics Co Ltd's recommended soldering profiles and guidelines to ensure reliable connections and avoid damage to the connector.
The operating temperature range for FMS006Z-2101-0 is typically -40°C to 105°C. However, it's essential to consult the datasheet or Yamaichi Electronics Co Ltd's documentation for specific guidance on temperature ratings and any potential deratings.

Trust Checks

Community Provided

System Verified

Community Approved

FMS006Z-2101-0 Overview

Use the download button to access the FMS006Z-2101-0 schematic symbol, PCB footprint, and 3D model.
