FOD7840V - onsemi

Description: UL 1577 and IEC 60747-5-5 certification pending; Low non-linearity; 15 kV/µs minimum CMTI; Low gain drift over temperature; 100 kHz Bandwidth; Advanced Sigma-Delta A/D Converter Technology; Fully Differential Circuit Topology

Download FOD7840V Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this FOD7840V model

Email notifications will be applied after download.

Send part feedback

Symbol

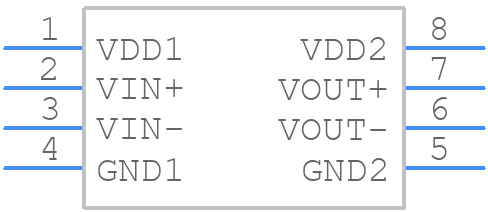

FOD7840V - onsemi - PCB symbol

PCB Footprints

FOD7840V - onsemi PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - PDIP8

Datasheet Download Datasheet
Stock & Prices Price & Stock for FOD7840V
Part Number FOD7840V
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Dual-In-Line Packages
Footprint Name Dual-In-Line Packages - PDIP8
Released Date Apr 23, 2026
Last Modified Date Apr 23, 2026 1:08 PM UTC
Pinout / Pin List Click Here (Member Only)

FOD7840V Details

Manufacturer Part Number:
FOD7840V
Manufacturer:
onsemi

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

FOD7840V Overview

Use the download button to access the FOD7840V schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FOD78, or try a keyword search, such as Optocoupler
