FOLC-120-L4-L-Q-LC - SAMTEC

Description: Board to Board & Mezzanine Connectors .050" FOURRAY Quad Row Tiger Eye Socket Strip

Download FOLC-120-L4-L-Q-LC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FOLC-120-L4-L-Q-LC - SAMTEC - PCB symbol
click to zoom
PCB Footprints

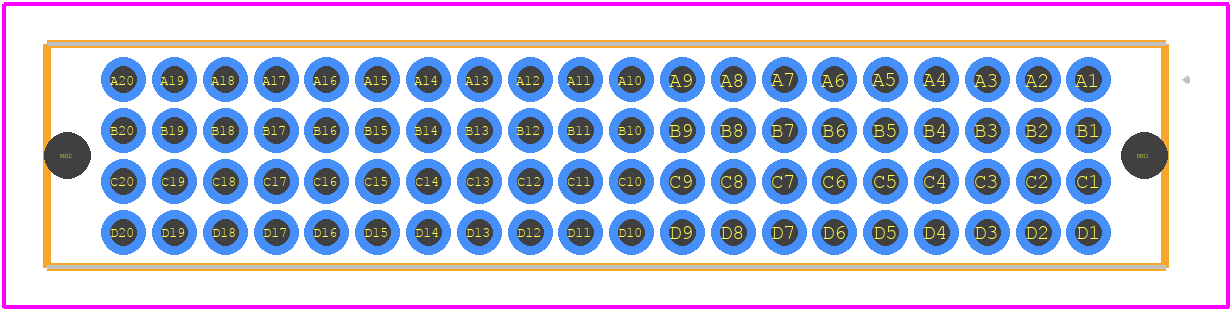

FOLC-120-L4-L-Q-LC - SAMTEC PCB footprint - Other - Other - FOLC-120-L4-L-Q-LC-3
click to zoom
3D Models
FOLC-120-L4-L-Q-LC - SAMTEC - 3D model - Other - FOLC-120-L4-L-Q-LC-3
click to zoom

FOLC-120-L4-L-Q-LC Details

  • Manufacturer Part Number:

    FOLC-120-L4-L-Q-LC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9

  • Additional Feature:

    FOURRAY; TIGER EYE

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    80
