FOLC-150-01-L-Q-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

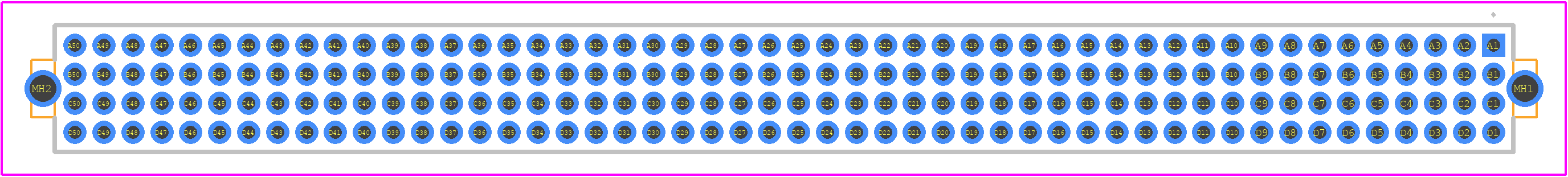

FOLC-150-01-L-Q-LC - SAMTEC PCB footprint - Other - Other - FOLC-150-01-L-Q-LC-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FOLC-150-01-L-Q-LC
Part Number FOLC-150-01-L-Q-LC
Manufacturer SAMTEC
Pin Count 202
Part Category Connector
Package Category Other
Footprint Name Other - FOLC-150-01-L-Q-LC-2
Released Date Dec 15, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FOLC-150-01-L-Q-LC Details

Manufacturer Part Number:
FOLC-150-01-L-Q-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
France, Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9.15
Additional Feature:
FOURRAY, TIGER EYE CONTACT
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
Terminal Pitch:
1.27 mm
Termination Type:
SOLDER
Total Number of Contacts:
200

FOLC-150-01-L-Q-LC Frequently Asked Questions (FAQs)

The recommended torque for the screw locks is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the FOLC-150-01-L-Q-LC connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the FOLC-150-01-L-Q-LC connector is 125°C (257°F) according to Samtec's datasheet.
The FOLC-150-01-L-Q-LC connector is not sealed and is not intended for use in wet or humid environments. If exposure to moisture is a concern, consider using a sealed or waterproof connector or applying additional protection measures.
The mating cycle life of the FOLC-150-01-L-Q-LC connector is 500 cycles minimum according to Samtec's datasheet.
