FP10-1200 - Triad Magnetics

Description: Power Transformers POWER XFMR 10.0Vct@1.20A UL/cUL FLAT PACK PCB MOUNT/FP10-1200

Download FP10-1200 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

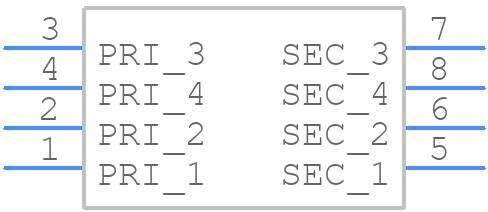

FP10-1200 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

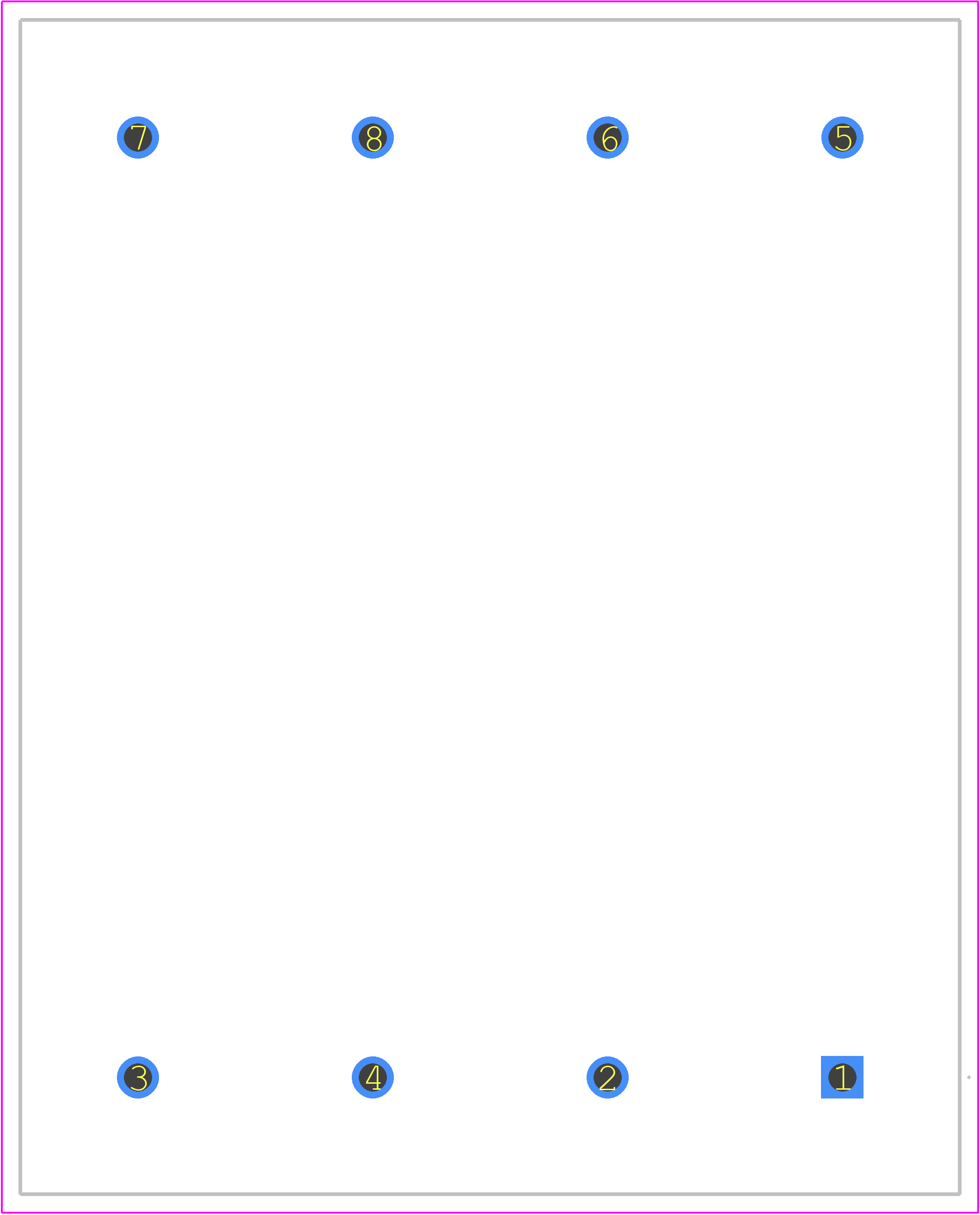

FP10-1200 - Triad Magnetics PCB footprint - Other - Other - FP10-1200-2
click to zoom
3D Models
FP10-1200 - Triad Magnetics - 3D model - Other - FP10-1200-2
click to zoom

FP10-1200 Details

  • Manufacturer Part Number:

    FP10-1200

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Additional Feature:

    PCB MOUNTABLE

  • Application:

    POWER

  • Approvals:

    UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    26.97 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2000 V

  • Length:

    63.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    2.4 A

  • Output Current 2:

    2.4 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    50.8 mm

FP10-1200 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP10-1200 is -40°C to 85°C, with a maximum storage temperature of 125°C.
  • Yes, the FP10-1200 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • The maximum allowable DCR for the FP10-1200 is 0.5 ohms per winding, measured at 20°C.
  • Yes, the FP10-1200 is compatible with lead-free soldering processes, with a peak soldering temperature of 260°C for 10 seconds.
  • The recommended torque specification for the FP10-1200's terminals is 0.5-1.5 N·m (4-12 in·lb).
