FP10-250 - Triad Magnetics

Description: Power Transformers POWER XFMR 10.0Vct@0.250A UL/cUL FLAT PACK PCB MOUNT/FP10-250

Download FP10-250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FP10-250 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

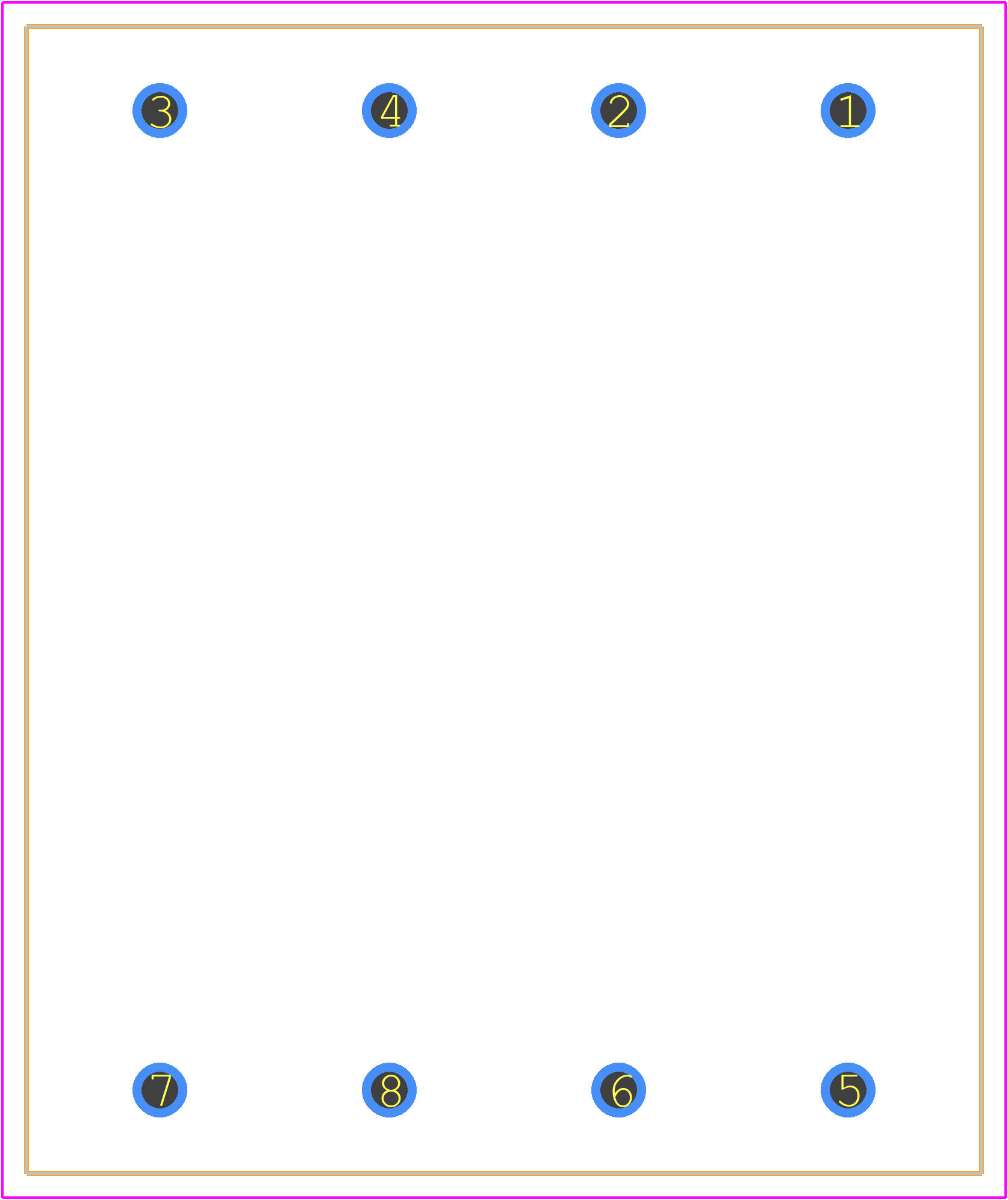

FP10-250 - Triad Magnetics PCB footprint - Other - Other - FP10-250-1
click to zoom
3D Models
FP10-250 - Triad Magnetics - 3D model - Other - FP10-250-1
click to zoom

FP10-250 Details

  • Manufacturer Part Number:

    FP10-250

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    16.51 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2000 V

  • Length:

    47.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Current 2:

    0.5 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    39.67 mm

FP10-250 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP10-250 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FP10-250 is designed to withstand high-vibration environments and meets the requirements of IEC 60068-2-6 for vibration testing.
  • The FP10-250 is rated for operation up to 10,000 feet (3,048 meters) above sea level.
  • Yes, the FP10-250 is designed to operate in humid environments and meets the requirements of IEC 60068-2-78 for humidity testing.
  • Yes, the FP10-250 is designed to meet the requirements of UL 508 and CSA C22.2 No. 14 for use in Class I, Division 2 hazardous locations.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP10-250 Overview

Use the download button to access the FP10-250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP10-, or try a keyword search, such as Power/Mains Transformers
