FP12-475 - Triad Magnetics

Description: Power Transformers POWER XFMR 12.6Vct@0.475A UL/cUL FLAT PACK PCB MOUNT/FP12-475

Download FP12-475 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

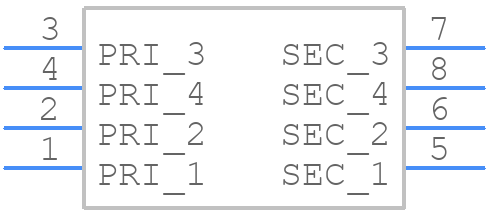

FP12-475 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

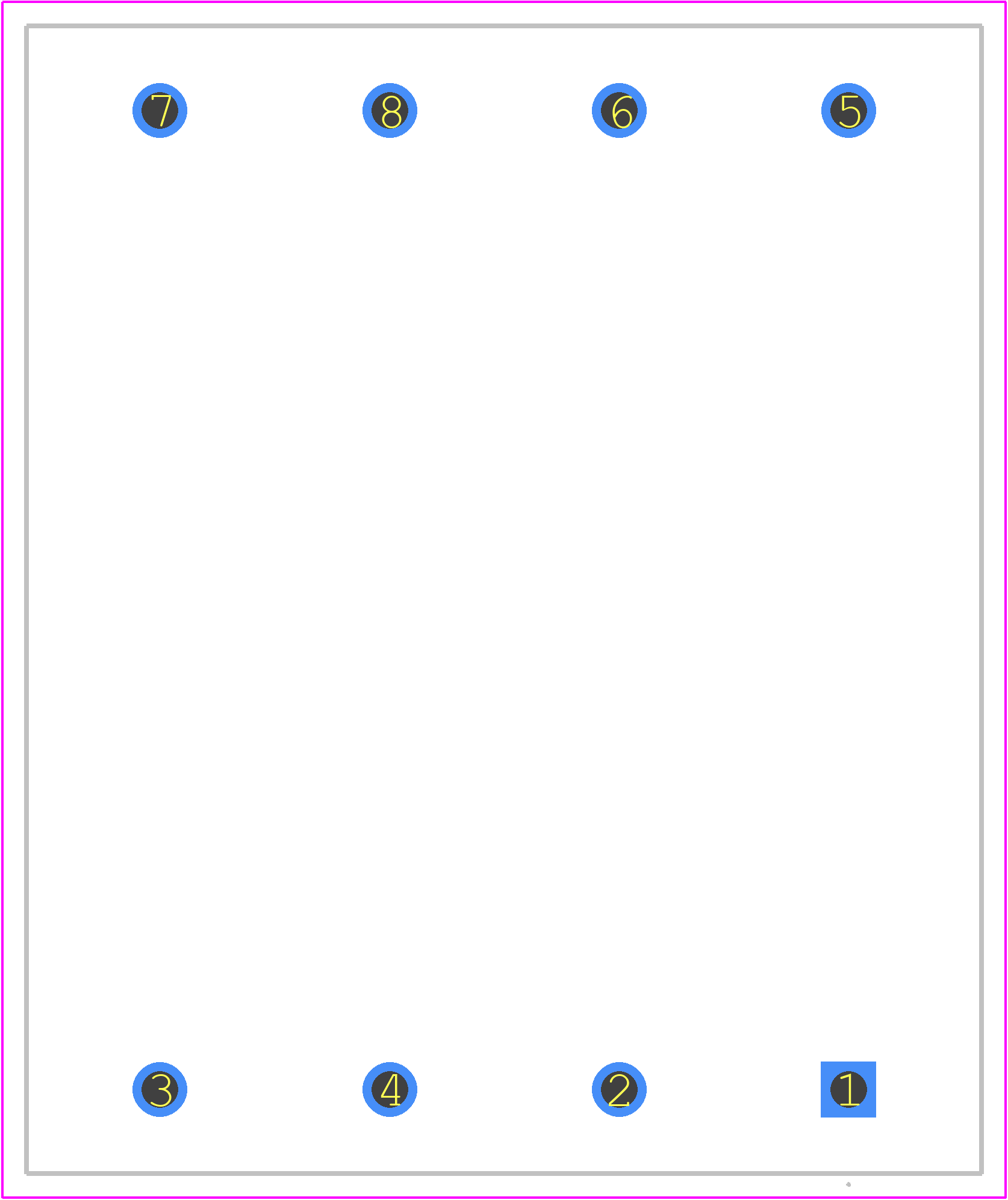

FP12-475 - Triad Magnetics PCB footprint - Other - Other - FP12-475-1
click to zoom
3D Models
FP12-475 - Triad Magnetics - 3D model - Other - FP12-475-1
click to zoom

FP12-475 Details

  • Manufacturer Part Number:

    FP12-475

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Additional Feature:

    PCB MOUNTABLE

  • Application:

    POWER

  • Approvals:

    UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    22.22 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2000 V

  • Length:

    47.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.95 A

  • Output Current 2:

    0.95 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    39.67 mm

FP12-475 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP12-475 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FP12-475 is designed to handle high-voltage applications up to 500Vrms, making it suitable for use in switch-mode power supplies, DC-DC converters, and other high-voltage systems.
  • The maximum power rating of the FP12-475 is 475VA, making it suitable for use in a wide range of applications, including industrial power supplies, medical devices, and telecommunications equipment.
  • Yes, the FP12-475 meets the requirements of UL 1561 and IEC 61558-1, ensuring compliance with safety standards for transformers used in electrical equipment.
  • The lead time for custom orders of the FP12-475 can vary depending on the quantity and specific requirements, but typically ranges from 6-12 weeks.
