FP12-950 - Triad Magnetics

Description: Power Transformers PC Mount, 12VA, 6Pin 12.6VCT@0.95A Series

Download FP12-950 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FP12-950 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

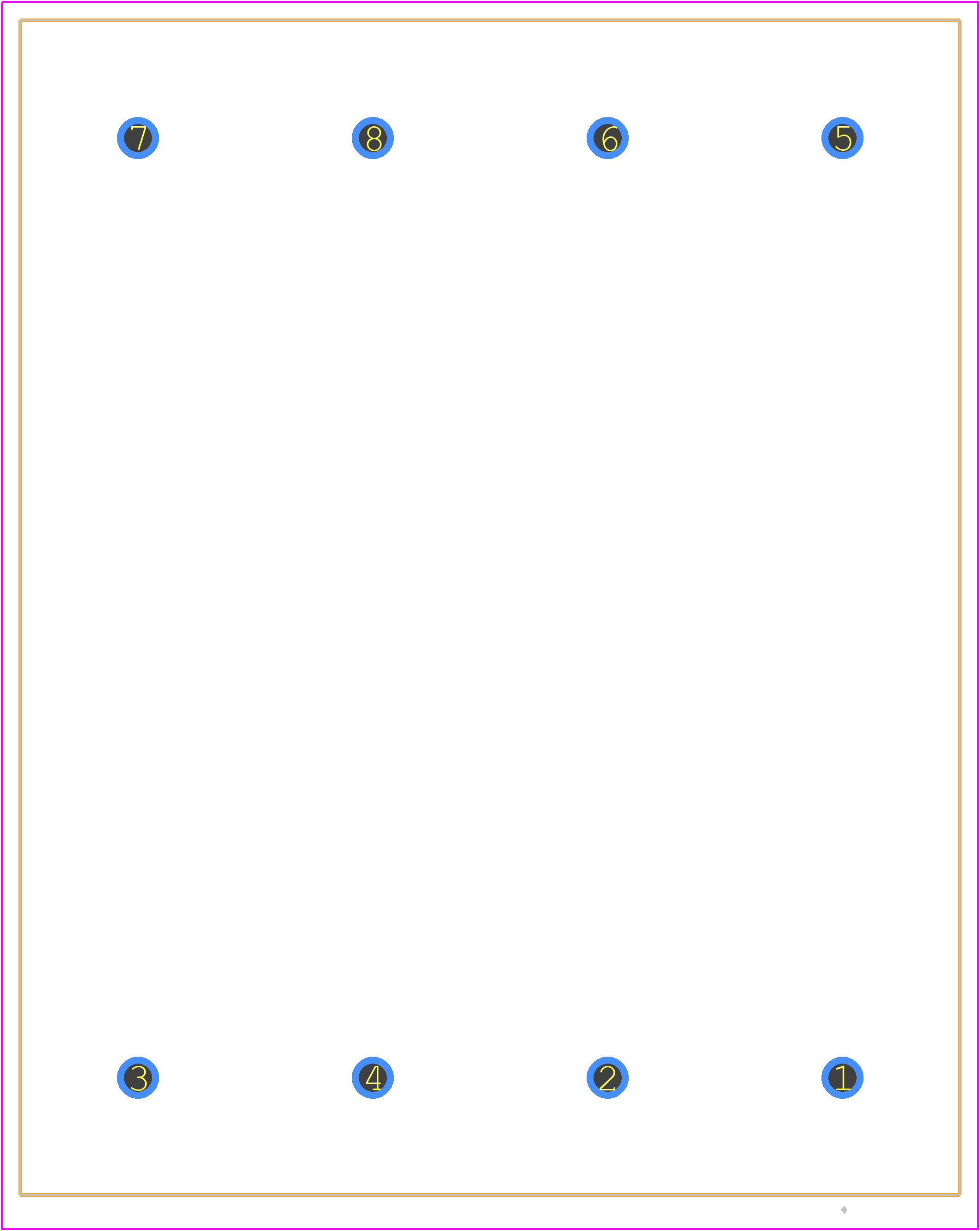

FP12-950 - Triad Magnetics PCB footprint - Other - Other - FP12-950-1
click to zoom
3D Models
FP12-950 - Triad Magnetics - 3D model - Other - FP12-950-1
click to zoom

FP12-950 Details

  • Manufacturer Part Number:

    FP12-950

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Additional Feature:

    PCB MOUNTABLE

  • Application:

    POWER

  • Approvals:

    UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    26.97 mm

  • Isolation Voltage:

    2000 V

  • Length:

    63.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.9 A

  • Output Current 2:

    1.9 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    12 VA

  • Width:

    50.8 mm

FP12-950 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP12-950 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FP12-950 is designed for high-voltage applications and can withstand up to 950Vrms between primary and secondary windings.
  • The maximum power rating for the FP12-950 is 12VA, making it suitable for low-power applications such as audio equipment, medical devices, and industrial control systems.
  • Yes, the FP12-950 is designed for use in switching power supplies and can handle high-frequency switching up to 100 kHz.
  • The leakage inductance of the FP12-950 is typically around 0.5-1.0 μH, which is relatively low and suitable for most applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FP12-950 Overview

Use the download button to access the FP12-950 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FP12-, or try a keyword search, such as Power/Mains Transformers
