FP16-375 - Triad Magnetics

Description: Power Transformers POWER XFMR 16.0Vct@0.375A UL/cUL FLAT PACK PCB MOUNT/FP16-375

Download FP16-375 Model

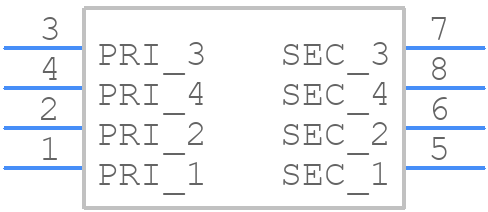

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

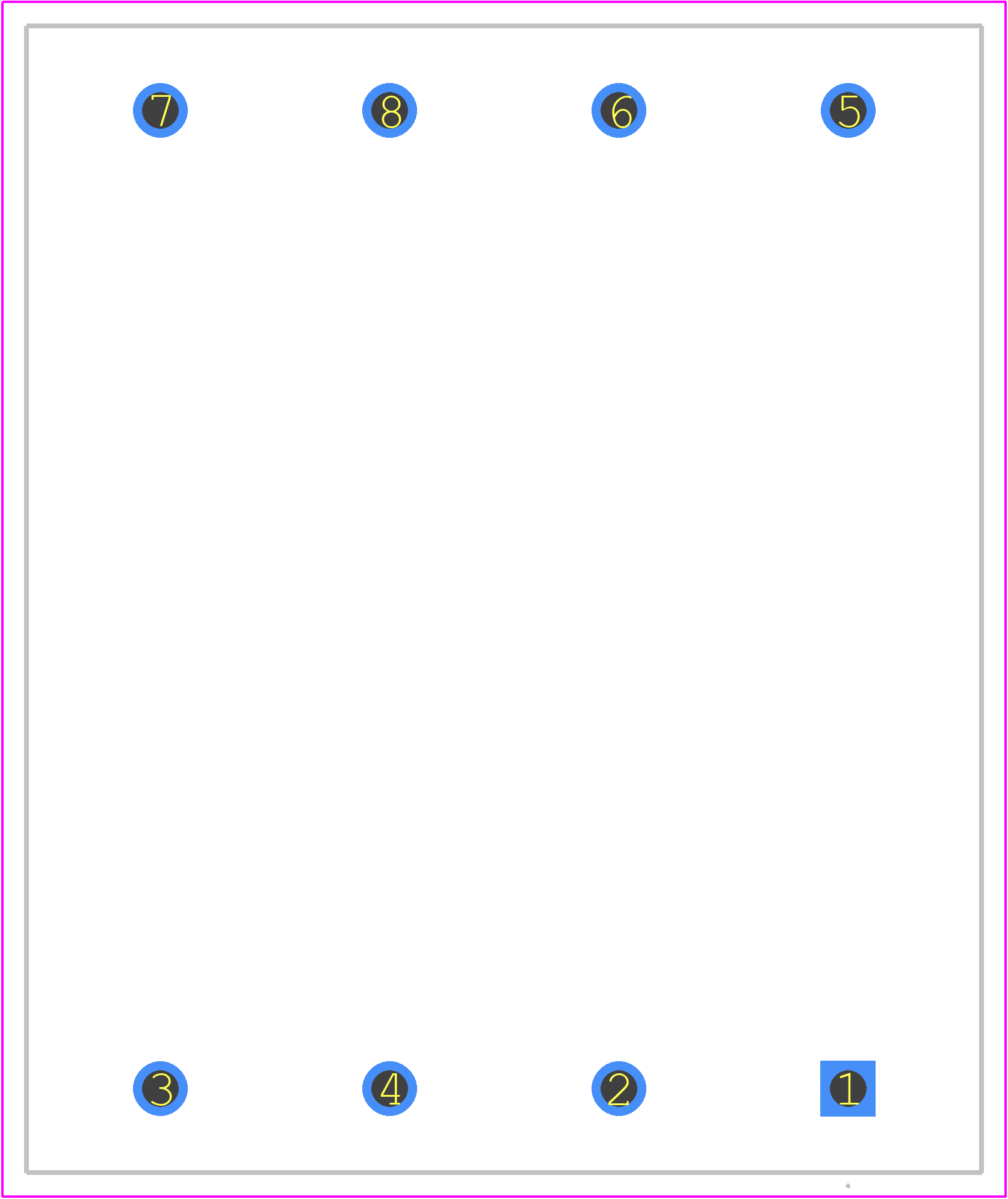

PCB Footprints
FP16-375 - Triad Magnetics PCB footprint - Other - Other - FP16-375-1
click to zoom
3D Models
FP16-375 - Triad Magnetics  - 3D model - Other - FP16-375-1
click to zoom

FP16-375 Details

  • Manufacturer Part Number:

    FP16-375

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Additional Feature:

    PCB MOUNTABLE

  • Application:

    POWER

  • Approvals:

    UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    22.22 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    2000 V

  • Length:

    47.62 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.75 A

  • Output Current 2:

    0.75 A

  • Output Voltage 1:

    8 V

  • Output Voltage 2:

    8 V

  • Primary Rating:

    DUAL 115/230V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    39.67 mm

FP16-375 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FP16-375 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FP16-375 is designed to withstand high-vibration environments and meets the vibration requirements of MIL-STD-202, Method 201A.
  • The maximum allowable DC resistance unbalance for the FP16-375 is 5%.
  • Yes, the FP16-375 is designed to meet the requirements of UL 508 and is suitable for use in Class I, Division 2 hazardous locations.
  • The recommended creepage and clearance distance for the FP16-375 is 3.2 mm (0.125 in) to ensure safe operation and meet safety standards.
