FPF1006 - onsemi

Description: 1.2 to 5.5 V Input Voltage Range

Download FPF1006 Model

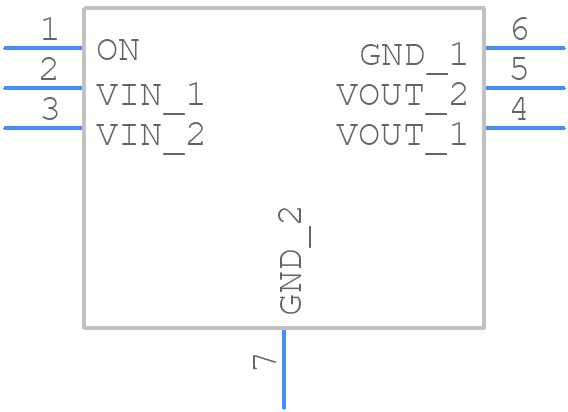

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
FPF1006 - onsemi PCB footprint - Small Outline No-lead - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511CY ISSUE O
click to zoom
3D Models
FPF1006 - onsemi  - 3D model - Small Outline No-lead - WDFN6 2x2, 0.65P CASE 511CY ISSUE O
click to zoom

FPF1006 Details

  • Manufacturer Part Number:

    FPF1006

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WDFN-6

  • Manufacturer Package Code:

    511CY

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    8

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag)

  • Time@Peak Reflow Temperature-Max (s):

    30

FPF1006 Frequently Asked Questions (FAQs)

  • The FPF1006 can operate from -40°C to 150°C, but the recommended operating temperature range is -20°C to 125°C for optimal performance.
  • To ensure proper biasing, connect the VCC pin to a stable 3.3V or 5V power supply, and the GND pin to a solid ground plane. Also, ensure that the input voltage (VIN) is within the recommended range of 2.7V to 5.5V.
  • For optimal performance, use a 4-layer PCB with a solid ground plane, and keep the input and output traces as short as possible. Avoid routing sensitive signals near the FPF1006's power pins.
  • The FPF1006 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the PCB is properly grounded.
  • A 1uF to 10uF ceramic capacitor is recommended for the bypass capacitor (CBYP) to ensure stable operation. The capacitor should be placed as close as possible to the FPF1006's VCC pin.
