FPF1038UCX - onsemi

Description: • 1.2 to 5.5 V Input Voltage Operating Range • Typical RDS(ON):; 20 mΩ at VIN=5.5 V; 21 mΩ at VIN=4.5 V; 37 mΩ at VIN=1.8 V; 75 mΩ at VIN=1.2 V• Slew Rate/Inrush Control with tR: 2.7 ms (Typical)• 3 A Maximum Continuous Current Capability• Low <1 µA Quiescent Current• ESD Protected: Above 8 kV HBM, 1.5 kV CDM• GPIO/CMOS-Compatible Enable Circuitry

Download FPF1038UCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

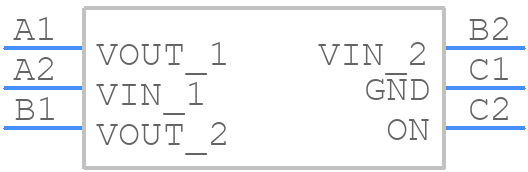

FPF1038UCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF1038UCX - onsemi PCB footprint - BGA - BGA - 6 ball wlcsp
click to zoom
3D Models
FPF1038UCX - onsemi - 3D model - BGA - 6 ball wlcsp
click to zoom

FPF1038UCX Details

  • Manufacturer Part Number:

    FPF1038UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    WLCSP-6

  • Manufacturer Package Code:

    567RL

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6

  • Analog IC - Other Type:

    Load switch

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Temperature Grade:

    INDUSTRIAL

  • Time@Peak Reflow Temperature-Max (s):

    30

FPF1038UCX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Keep the thermal pad connected to the ground plane to improve heat dissipation.
  • Monitor the input voltage, output current, and temperature during startup. Ensure the device is within the recommended operating conditions to prevent damage or overheating.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 4.7 μF to 10 μF is recommended for optimal performance and stability.
  • Tie the EN pin to a logic high (e.g., VCC) during power-up and power-down sequences to ensure proper device operation and prevent unwanted startup.
  • A low-ESR ceramic capacitor (e.g., X5R or X7R) with a value between 10 μF to 22 μF is recommended for optimal performance and stability.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FPF1038UCX Overview

Use the download button to access the FPF1038UCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF10, or try a keyword search, such as Other Signal Circuits
