OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Interface IC Type:
BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 Code:
R-PBGA-B12
JESD-609 Code:
e1
Length:
1.8 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Current Flow Direction:
SOURCE
Output Peak Current Limit-Nom:
1 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
VFBGA
Package Shape:
RECTANGULAR
Package Style:
GRID ARRAY, VERY THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.533 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.5 V
Supply Voltage-Nom:
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.4 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
1.3 mm
FPF2595UCX Frequently Asked Questions (FAQs)
A good PCB layout for the FPF2595UCX involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the input and output capacitors are properly selected and placed close to the device. Also, ensure the PCB layout is well-designed, and the device is properly decoupled from the power supply. Additionally, follow the recommended component values and layout guidelines in the datasheet.
The FPF2595UCX can handle input voltages up to 24V, but it's recommended to operate within the specified input voltage range of 6.5V to 20V for optimal performance and reliability.
The FPF2595UCX is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent overheating.
To troubleshoot issues with the FPF2595UCX, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly selected and placed. Check the PCB layout for any signs of overheating or electrical noise. Use an oscilloscope to check for any oscillations or noise on the output voltage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF2595UCX Overview

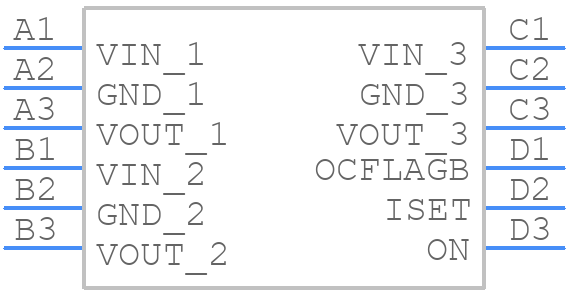

Use the download button to access the FPF2595UCX schematic symbol, PCB footprint, and 3D model.
