A good PCB layout for the FPF2702MX involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure stability, make sure the input and output capacitors are properly selected, the PCB layout is well-designed, and the device is operated within its recommended operating conditions. Additionally, a minimum ESR (Equivalent Series Resistance) of 0.1 ohms for the output capacitor is recommended.
The FPF2702MX can handle a maximum input voltage of 18V, but it's recommended to operate it within the recommended input voltage range of 2.7V to 16V for optimal performance and reliability.
The FPF2702MX is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to operate the device within its recommended operating temperature range of -40°C to 105°C for optimal performance and reliability.
The output capacitor should be selected based on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and an ESR of less than 0.1 ohms. The capacitor should also be rated for the maximum output voltage and operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPF2702MX Overview

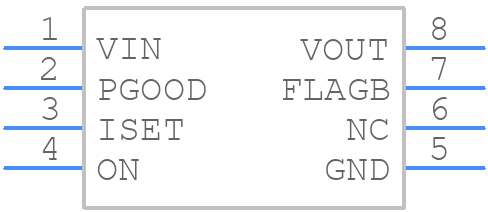

Use the download button to access the FPF2702MX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPF27,
or try a keyword search, such as Peripheral Drivers
