FPF3040UCX - onsemi

Description: ON Semiconductor FPF3040UCX, 1-Channel Intelligent Power Switch, Power Source Selector Switch, 2A, 4 → 10.5V

Download FPF3040UCX Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

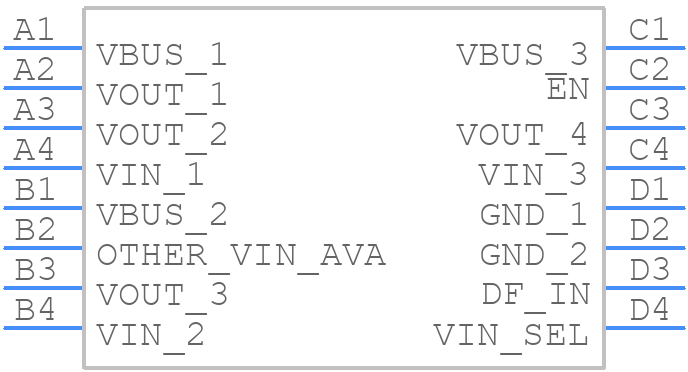

Symbol
FPF3040UCX - onsemi - PCB symbol
click to zoom
PCB Footprints
FPF3040UCX - onsemi PCB footprint - BGA - BGA - wlcspbga
click to zoom
3D Models
FPF3040UCX - onsemi - 3D model - BGA - wlcspbga
click to zoom

FPF3040UCX Details

  • Manufacturer Part Number:

    FPF3040UCX

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    WLCSP-16

  • Manufacturer Package Code:

    567SE

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Analog IC - Other Type:

    DPST

  • JESD-30 Code:

    R-PBGA-B16

  • JESD-609 Code:

    e1

  • Length:

    1.96 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO/NC

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • On-state Resistance-Max (Ron):

    0.15 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    COMMON OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.625 mm

  • Supply Voltage-Max (Vsup):

    10.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    TIN SILVER COPPER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.76 mm

FPF3040UCX Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias under the device can help to dissipate heat efficiently. It's also recommended to use a thermal pad on the bottom of the device.
  • The device requires a stable input voltage and a proper biasing circuit to ensure optimal performance. A voltage regulator or a voltage reference can be used to provide a stable input voltage, and a resistive divider or a voltage-controlled voltage source can be used to set the bias voltage.
  • The recommended input capacitance value is 10nF to 100nF, depending on the specific application and operating frequency. A larger capacitance value can help to filter out noise and improve stability, but may also increase the startup time.
  • The device has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, additional protection components such as TVS diodes, zener diodes, or fuses can be used to provide extra protection against overvoltage and overcurrent conditions.
  • The recommended operating temperature range for the FPF3040UCX is -40°C to 125°C. However, the device can operate up to 150°C with reduced performance and reliability.
