The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the mounting instructions and torque specifications provided by Yamaichi Electronics Co Ltd or the manufacturer of the screws used.
Yes, the FPS009-2900-0 is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the vibration specifications and ensure that the connector is properly secured to the PCB and the system is designed to withstand the expected vibration levels.
Yes, the FPS009-2900-0 is compatible with lead-free soldering processes. The connector is designed to withstand the higher temperatures required for lead-free soldering, but it's recommended to follow the recommended soldering profile and temperature guidelines provided by Yamaichi Electronics Co Ltd.
The recommended cleaning process for the FPS009-2900-0 involves using a soft brush and a mild detergent solution to remove any debris or contaminants. Avoid using harsh chemicals or abrasive materials that can damage the connector's surface finish or compromise its performance.
The FPS009-2900-0 is designed to operate in a variety of environments, but its performance may be affected by extreme temperatures, humidity, or other environmental factors. It's recommended to consult the environmental specifications and ensure that the connector is properly sealed and protected from the environment.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FPS009-2900-0 Overview

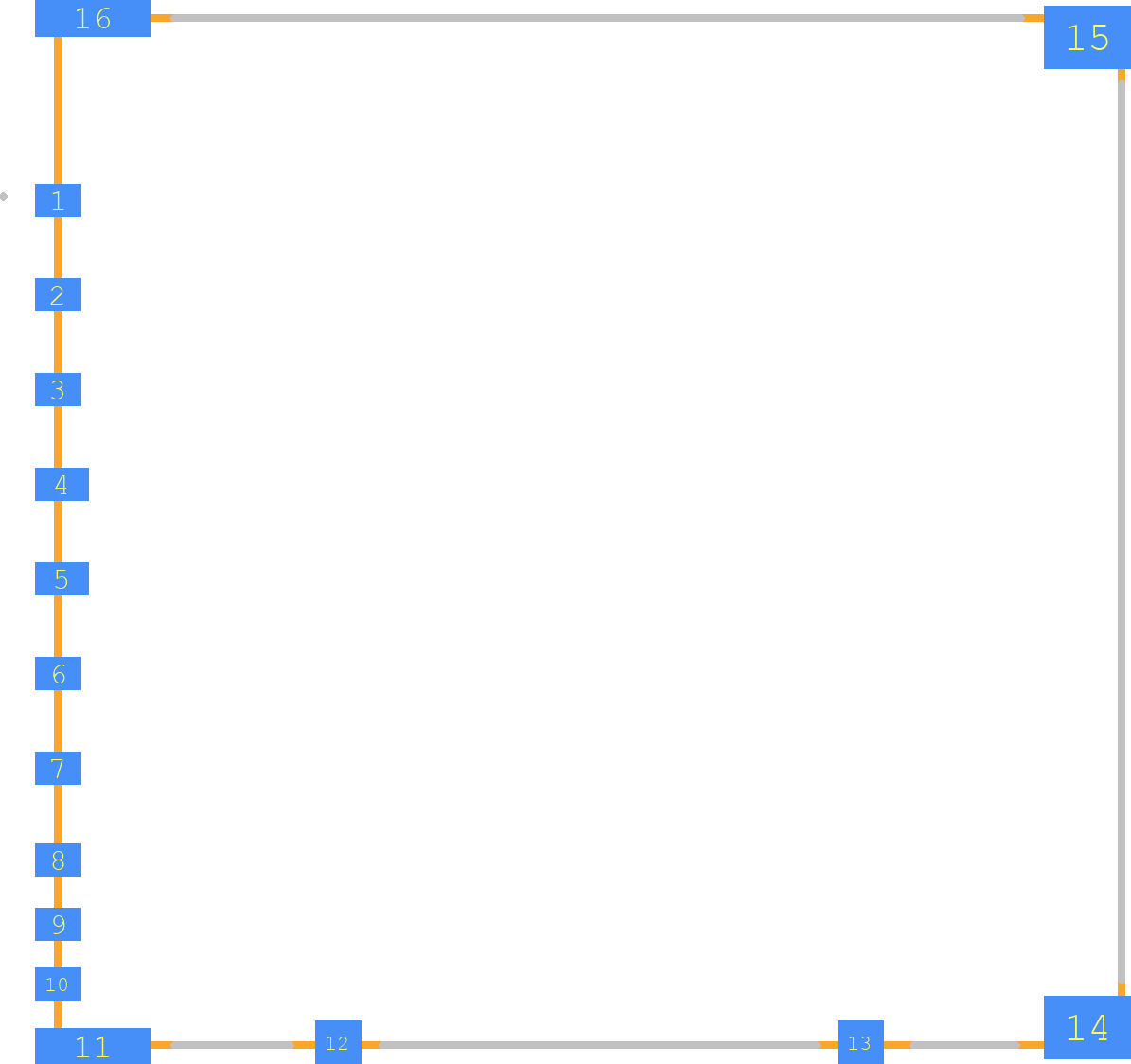

Use the download button to access the FPS009-2900-0 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FPS00,
or try a keyword search, such as Headers and Edge Type Connectors
