FPS009-2920-0 footprint, schematic symbol and 3D model by Yamaichi

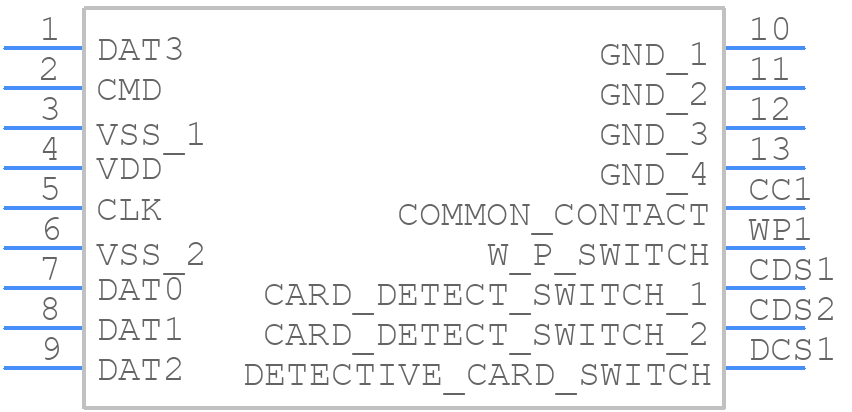

Symbol

click to zoom

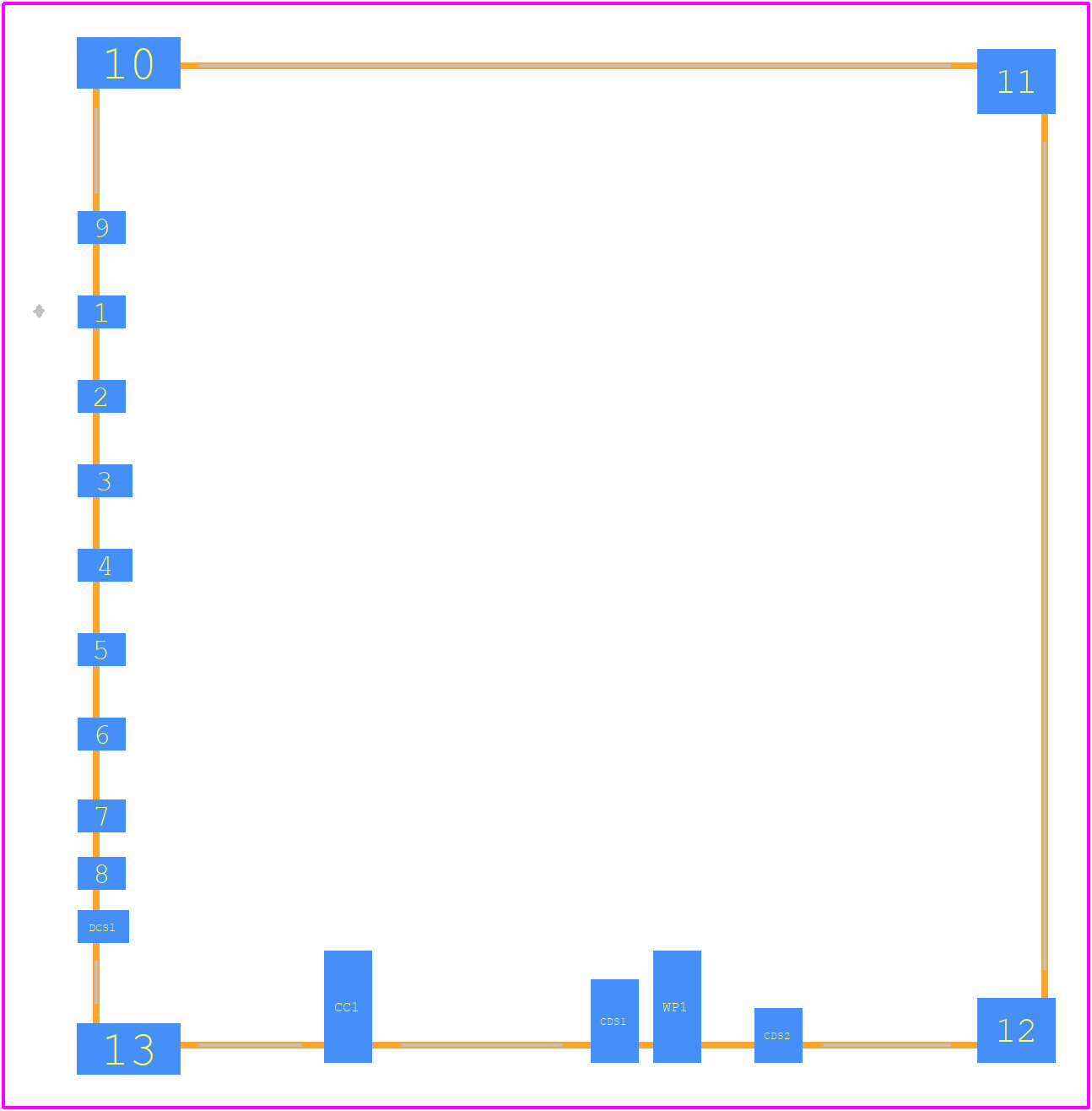

PCB Footprints

FPS009-2920-0 - Yamaichi PCB footprint - Other - Other - FPS009-2920-0-3

click to zoom

3D Models

FPS009-2920-0 - Yamaichi - 3D model - Other - FPS009-2920-0-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FPS009-2920-0
Part Number FPS009-2920-0
Manufacturer Yamaichi
Pin Count 18
Part Category Connector
Package Category Other
Footprint Name Other - FPS009-2920-0-3
Released Date Apr 9, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FPS009-2920-0 Details

Manufacturer Part Number:
FPS009-2920-0
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Yamaichi Electronics Co Ltd
Board Mounting Option:
SOLDER HOLDING FLANGE
Body Breadth:
0.11 inch
Body Depth:
1.15 inch
Body Length:
1.106 inch
Connector Type:
PCMCIA CONNECTOR
Contact Gender:
MALE
Contact Material:
COPPER ALLOY
Contact Pattern:
RECTANGULAR
Contact Resistance:
7 mΩ
Contact Style:
COMPRESSION
Dielectric Withstanding Voltage:
700VAC V
Durability:
10000 Cycles
Filter Feature:
NO
Insulation Resistance:
100000000 Ω
Insulator Color:
BLACK
Insulator Material:
POLYETHYLENE
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
PCB Contact Pattern:
RECTANGULAR
Rated Current (Signal):
0.5 A
Reference Standard:
UL
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
8

FPS009-2920-0 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of FPS009-2920-0 is 0.5 N·m to 1.5 N·m, as specified in the manufacturer's application notes.
Yes, FPS009-2920-0 is designed to withstand vibrations up to 10 G (10-2000 Hz) and can be used in high-vibration environments, but it's recommended to consult with the manufacturer for specific application guidance.
Yes, FPS009-2920-0 is compatible with lead-free soldering, and the manufacturer recommends using a soldering temperature of 260°C (500°F) or lower to prevent damage to the connector.
The maximum operating temperature range for FPS009-2920-0 is -40°C to 125°C (-40°F to 257°F), but it's recommended to consult with the manufacturer for specific application guidance, as temperature derating may apply.
FPS009-2920-0 has a moisture sensitivity level (MSL) of 3, which means it can withstand humid or wet environments, but it's recommended to follow the manufacturer's guidelines for moisture protection and sealing to ensure reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

FPS009-2920-0 Overview

Use the download button to access the FPS009-2920-0 schematic symbol, PCB footprint, and 3D model.
