FPS009-3001-BL footprint, schematic symbol and 3D model by Yamaichi

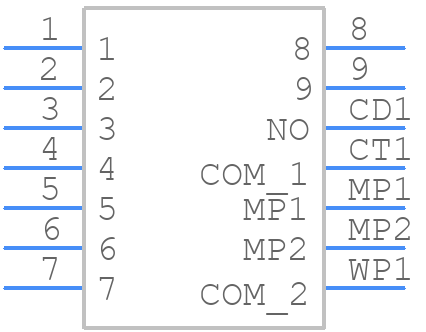

Symbol

click to zoom

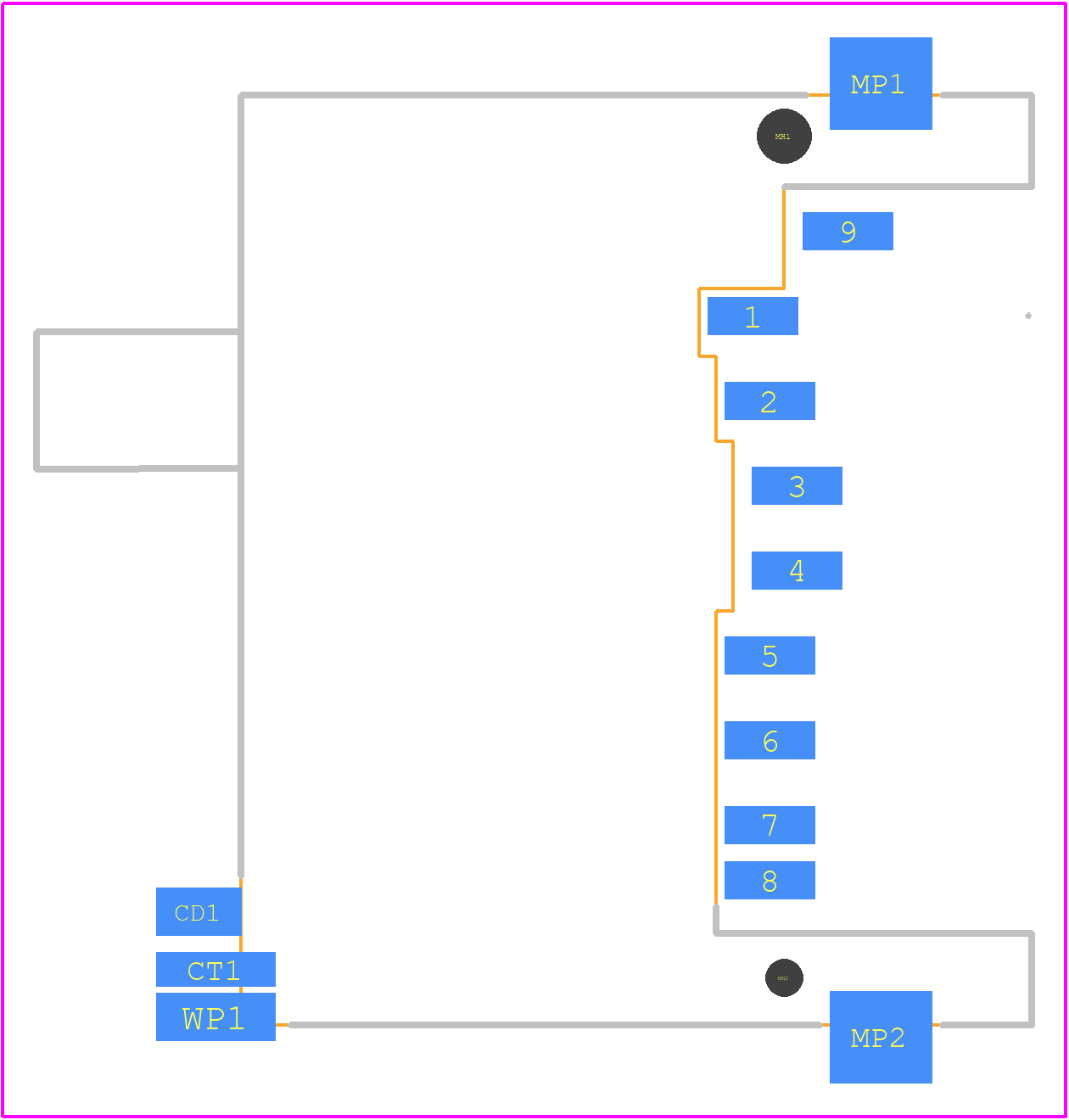

PCB Footprints

FPS009-3001-BL - Yamaichi PCB footprint - Other - Other - FPS009-3001-BL-8

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FPS009-3001-BL
Part Number FPS009-3001-BL
Manufacturer Yamaichi
Pin Count 14
Part Category Connector
Package Category Other
Footprint Name Other - FPS009-3001-BL-8
Released Date Apr 5, 2021
Last Modified Date Nov 19, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

FPS009-3001-BL Details

Manufacturer Part Number:
FPS009-3001-BL
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Yamaichi Electronics Co Ltd
YTEOL:
0
Board Mounting Option:
COMPLIANT BOARDLOCK
Body Breadth:
0.134 inch
Body Depth:
0.917 inch
Body Length:
1.079 inch
Connector Type:
PCB CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
100 mΩ
Contact Style:
COMPRESSION
Dielectric Withstanding Voltage:
500VAC V
Durability:
10000 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Material:
GLASS FILLED LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.098 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
0.5 A
Terminal Pitch:
2.5 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
9

FPS009-3001-BL Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5 N·m to 1.5 N·m. It's essential to follow this range to ensure reliable connections and prevent damage to the terminals.
Yes, the FPS009-3001-BL is designed to withstand vibrations up to 10 G (10-2000 Hz) according to IEC 60068-2-6. However, it's crucial to ensure proper mounting and secure connections to maintain reliability in high-vibration environments.
The operating temperature range for FPS009-3001-BL is -40°C to 105°C. It's essential to ensure the device operates within this range to maintain its performance and reliability.
Yes, FPS009-3001-BL is compatible with lead-free soldering processes. The device is designed to withstand the higher temperatures required for lead-free soldering, ensuring reliable connections and minimizing the risk of damage.
It's recommended to store FPS009-3001-BL in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. This helps prevent moisture absorption and ensures the device's reliability.

Trust Checks

Community Provided

System Verified

Community Approved

FPS009-3001-BL Overview

Use the download button to access the FPS009-3001-BL schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like FPS00, or try a keyword search, such as Headers and Edge Type Connectors
