FPS009-3202-BL - Yamaichi

Description: PCMCIA Connector, 9 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Surface Mount Terminal,500 mA,-25C +85C,250V

Download FPS009-3202-BL Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

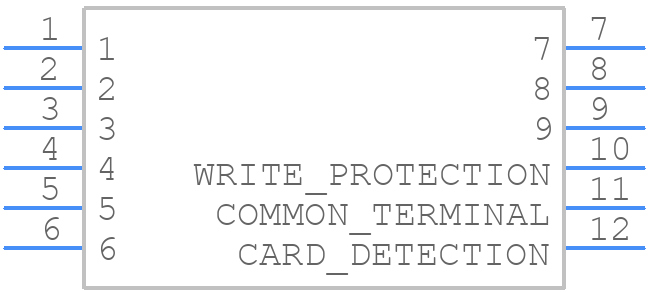

FPS009-3202-BL - Yamaichi - PCB symbol
click to zoom
PCB Footprints

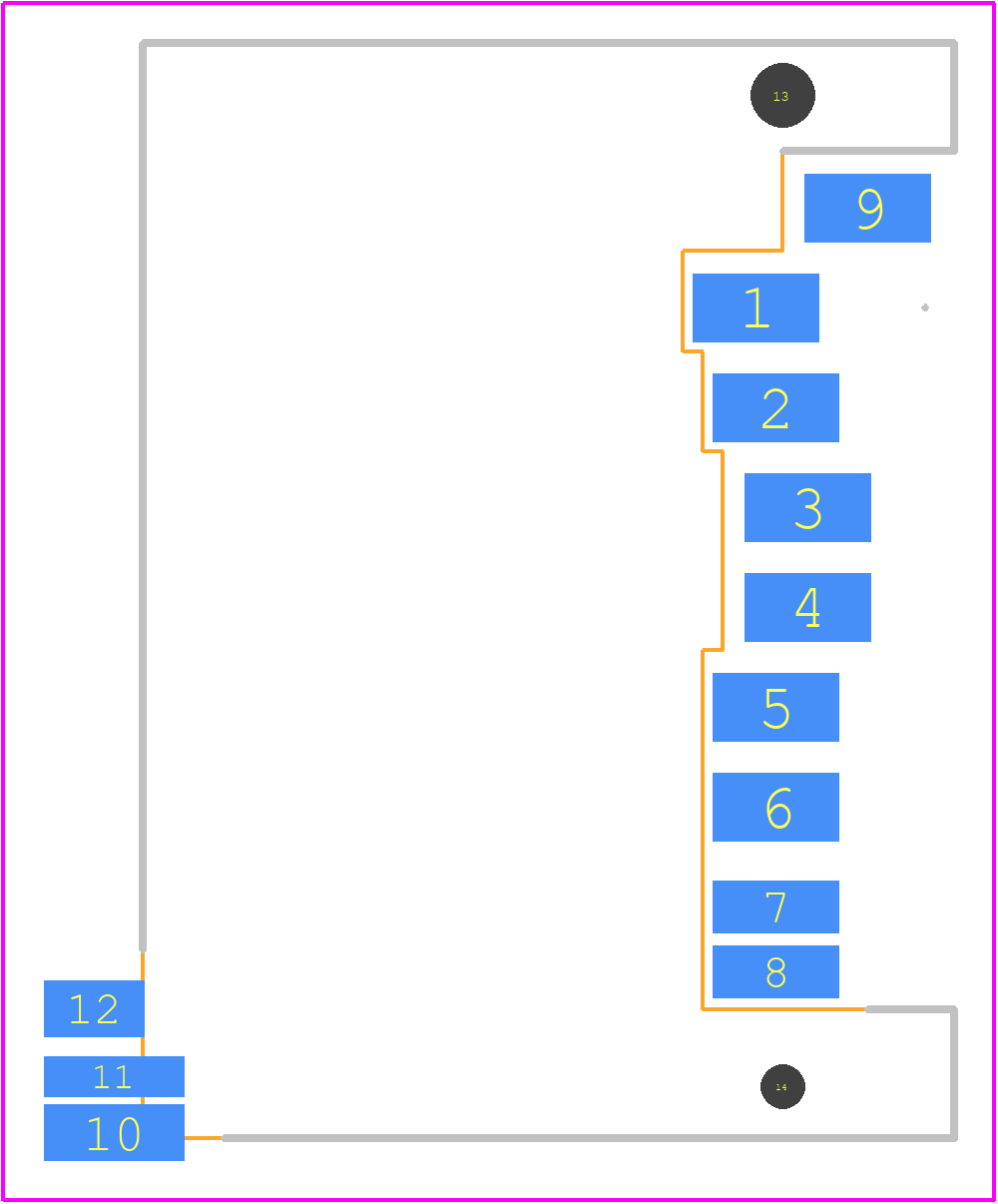

FPS009-3202-BL - Yamaichi PCB footprint - Other - Other - FPS009-3202-BL-5
click to zoom
3D Models
FPS009-3202-BL - Yamaichi - 3D model - Other - FPS009-3202-BL-5
click to zoom

FPS009-3202-BL Details

  • Manufacturer Part Number:

    FPS009-3202-BL

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Yamaichi Electronics Co Ltd

  • YTEOL:

    0

  • Board Mounting Option:

    PEG

  • Body Breadth:

    0.136 inch

  • Body Depth:

    0.799 inch

  • Body Length:

    1.079 inch

  • Connector Type:

    PCMCIA CONNECTOR

  • Contact Finish Mating:

    AU ON NI

  • Contact Finish Termination:

    TIN COPPER OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    100 mΩ

  • Dielectric Withstanding Voltage:

    700VAC V

  • Durability:

    10000 Cycles

  • Filter Feature:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.098 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Rated Current (Signal):

    0.5 A

  • Terminal Pitch:

    2.4892 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    9

FPS009-3202-BL Frequently Asked Questions (FAQs)

  • The recommended torque is 0.5 N·m to 1.5 N·m, but it's recommended to consult the mounting instructions and torque specifications provided by Yamaichi Electronics Co Ltd or the manufacturer of the screws used.
  • Yes, the FPS009-3202-BL is designed to withstand vibrations and can be used in high-vibration environments. However, it's recommended to consult the vibration specifications and ensure that the connector is properly mounted and secured to prevent damage or disconnection.
  • Yes, the FPS009-3202-BL is compatible with lead-free soldering processes. The connector is designed to withstand the higher temperatures required for lead-free soldering, but it's recommended to follow the manufacturer's soldering guidelines and temperature specifications.
  • The maximum operating temperature range for the FPS009-3202-BL is -40°C to 105°C. However, it's recommended to consult the datasheet and manufacturer's specifications for specific temperature ratings and derating guidelines.
  • The FPS009-3202-BL is designed to be resistant to humidity and moisture, but it's not recommended for use in submerged or continuously wet environments. It's recommended to consult the manufacturer's specifications and environmental ratings for specific guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FPS009-3202-BL Overview

Use the download button to access the FPS009-3202-BL schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FPS00, or try a keyword search, such as Headers and Edge Type Connectors
