FQA40N25 - onsemi

Description: Low Gate Charge ( Typ. 85nC); 40A, 250V RDS(on) = 70mΩ(Max.) @VGS = 10 V, ID = 20A; Low Crss ( Typ. 70pF); 100% Avalanche Tested

Download FQA40N25 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

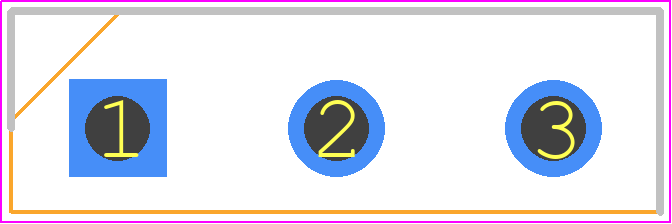

FQA40N25 - onsemi PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - 6
click to zoom
3D Models
FQA40N25 - onsemi  - 3D model - Transistor Outline, Vertical - 6
click to zoom

FQA40N25 Details

  • Manufacturer Part Number:

    FQA40N25

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TO-3P-3L

  • Package Description:

    TO-3PN, 3 PIN

  • Manufacturer Package Code:

    340BZ

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    5.88

  • Avalanche Energy Rating (Eas):

    800 mJ

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    250 V

  • Drain Current-Max (ID):

    40 A

  • Drain-source On Resistance-Max:

    0.07 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    90 pF

  • JESD-30 Code:

    R-PSFM-T3

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    3

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    FLANGE MOUNT

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    280 W

  • Pulsed Drain Current-Max (IDM):

    160 A

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Position:

    SINGLE

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

  • Turn-off Time-Max (toff):

    590 ns

  • Turn-on Time-Max (ton):

    1200 ns

FQA40N25 Frequently Asked Questions (FAQs)

  • The maximum SOA for the FQA40N25 is typically defined by the voltage and current ratings. The device can safely operate up to 250°C junction temperature, 25V drain-source voltage, and 40A continuous drain current.
  • To ensure proper thermal management, a heat sink with a thermal resistance of less than 1°C/W is recommended. The device should be mounted on a PCB with a copper area of at least 1 square inch, and thermal interface material should be used to minimize thermal resistance.
  • The recommended gate drive voltage for the FQA40N25 is between 10V and 15V. A higher gate drive voltage can reduce the on-state resistance, but may also increase the switching losses.
  • To protect the FQA40N25 from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
  • The maximum allowed dv/dt for the FQA40N25 is typically around 10V/ns. Exceeding this value can cause the device to malfunction or fail.
