FR01AC16HB-S - NKK Switches

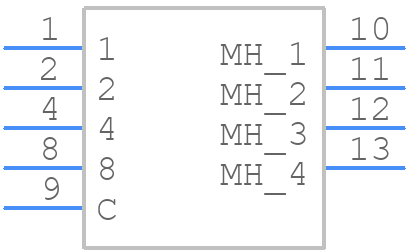

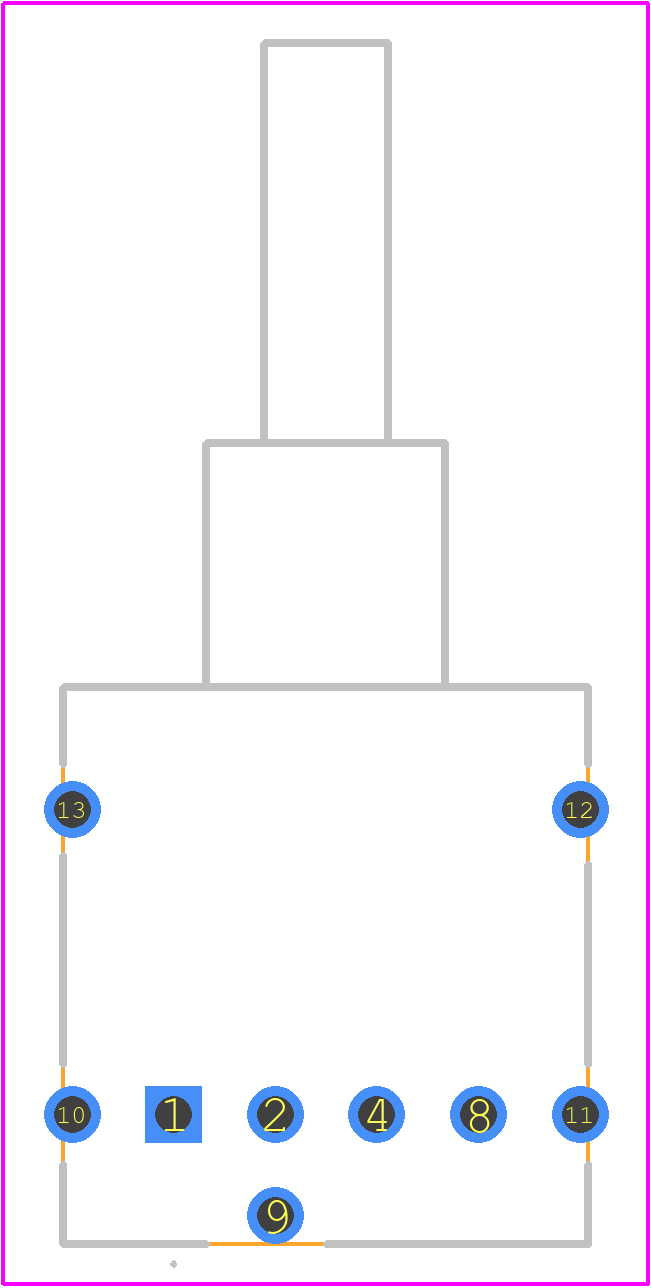

FR01AC16HB-S Details

• Manufacturer Part Number:

  FR01AC16HB-S

• Brand Name:

  NKK Switches

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Mainland China

• ECCN Code:

  EAR99

• HTS Code:

  8536.50.90.20

• Manufacturer:

  NKK Switches

• YTEOL:

  7

• Actuator Finish:

  NICKEL

• Actuator Length:

  0.394 inch

• Actuator Material:

  BRASS

• Actuator Type:

  ROTARY SHAFT

• Additional Feature:

  METAL SHAFT

• Body Breadth:

  10.9982 mm

• Body Height:

  13.8938 mm

• Body Length or Diameter:

  13.1064 mm

• Bushing Diameter:

  0.236 inch

• Bushing Length:

  0.24 inch

• Bushing Type:

  M6P0.75

• Center Contact Material:

  COPPER ALLOY

• Center Contact Plating:

  GOLD

• Contact Current(DC)-Max:

  0.1 A

• Contact (DC) Max Rating R Load:

  0.1A@5VDC

• Contact Resistance:

  0.1 mΩ

• Contact Timing:

  BREAK-BEFORE-MAKE

• Contact Voltage(DC)-Max:

  5 V

• Dielectric Withstand Volts:

  250VAC V

• Electrical Life:

  10000 Cycle(s)

• End Contact Material:

  PHOSPHOR BRONZE

• End Contact Plating:

  GOLD

• Housing Material:

  GLASS FILLED POLYAMIDE

• Indexing Angle:

  22.5 deg

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  GLASS FILLED POLYAMIDE

• JESD-609 Code:

  e4

• Mounting Feature:

  THROUGH HOLE-RIGHT ANGLE

• Number of Positions:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• PCB Hole Count:

  9

• Surface Mount:

  NO

• Switch Action:

  CIRCULAR

• Switch Type:

  ROTARY SWITCH

• Terminal Finish:

  GOLD

• Terminal Length:

  0.13 inch

• Terminal Material:

  PHOSPHOR BRONZE

• Termination Type:

  SOLDER
