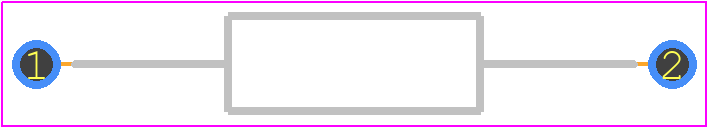

FRM-25JR-52-100R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - FRM-25JR-52-100R

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for FRM-25JR-52-100R
Part Number FRM-25JR-52-100R
Manufacturer Yageo Group
Pin Count 2
Part Category Resistor
Package Category Resistors, Axial Diameter Horizontal Mounting
Footprint Name Resistors, Axial Diameter Horizontal Mounting - FRM-25JR-52-100R
Released Date Jan 27, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

FRM-25JR-52-100R Details

Manufacturer Part Number:
FRM-25JR-52-100R
Rohs Code:
Yes
Part Life Cycle Code:
Active Unconfirmed
Reach Compliance Code:
Compliant
Country Of Origin:
Mainland China, Taiwan
ECCN Code:
EAR99
Manufacturer:
YAGEO Corporation
YTEOL:
2
Additional Feature:
FLAME PROOF, FUSING POWER: 25 TIMES RATED POWER
Construction:
Cylindrical
Fusing Time:
60 s
JESD-609 Code:
e3
Lead Diameter:
0.55 mm
Lead Length:
28 mm
Number of Terminals:
2
Operating Temperature-Max:
155 °C
Operating Temperature-Min:
-55 °C
Package Diameter:
2.4 mm
Package Length:
6.3 mm
Package Shape:
CYLINDRICAL PACKAGE
Package Style:
Axial
Packing Method:
TR
Rated Power Dissipation (P):
0.25 W
Resistance:
100 Ω
Resistor Type:
FUSIBLE RESISTOR
Technology:
METAL FILM
Terminal Finish:
MATTE TIN
Tolerance:
5%
Working Voltage:
200 V

FRM-25JR-52-100R Frequently Asked Questions (FAQs)

The recommended soldering temperature for FRM-25JR-52-100R is between 260°C to 280°C for a maximum of 10 seconds.
Yes, FRM-25JR-52-100R is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
The MSL of FRM-25JR-52-100R is level 1, which means it can withstand a maximum of 30°C and 60% relative humidity for 168 hours.
While FRM-25JR-52-100R is a general-purpose resistor, it is not recommended for high-frequency applications above 100 MHz due to its construction and materials.
FRM-25JR-52-100R should be stored in a dry, cool place with a temperature range of 5°C to 30°C and relative humidity below 60%.
