The recommended soldering temperature profile for FRM-50JR-52-100R is 260°C for 10 seconds, with a peak temperature of 240°C. However, it's always best to consult the YAGEO Corporation's soldering guidelines for the most up-to-date information.
Yes, FRM-50JR-52-100R is compatible with lead-free soldering. YAGEO Corporation's resistors are designed to meet the requirements of lead-free soldering, making them suitable for use in RoHS-compliant applications.
The power rating of FRM-50JR-52-100R decreases as the temperature increases. At 70°C, the power rating is 0.5W, and at 100°C, it is 0.25W. It's essential to consult the datasheet for the derating curve to ensure the resistor is operated within its specified power rating.
FRM-50JR-52-100R is designed to operate in environments with a relative humidity of up to 80%. However, it's recommended to take precautions to prevent moisture ingress, such as using a conformal coating or potting the resistor in a sealed enclosure.
The expected lifespan of FRM-50JR-52-100R is 10,000 hours at 70°C, with a failure rate of less than 1% per 1,000 hours. However, the actual lifespan may vary depending on the operating conditions, such as temperature, humidity, and power rating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FRM-50JR-52-100R Overview

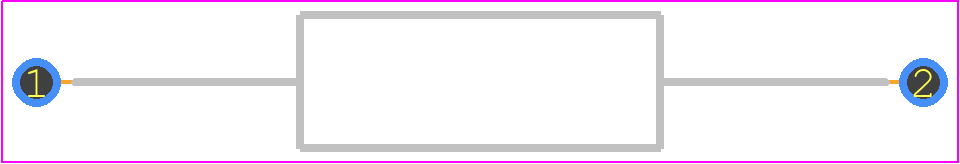

Use the download button to access the FRM-50JR-52-100R schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like FRM-5,
or try a keyword search, such as Fusible Resistors
