FRM50SJR-52-150R - Yageo Group

Description: RES 150 OHM 1/2W 5% AXIAL

Download FRM50SJR-52-150R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FRM50SJR-52-150R - Yageo Group - PCB symbol
click to zoom
PCB Footprints

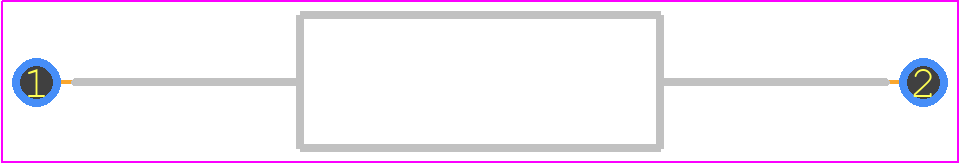

FRM50SJR-52-150R - Yageo Group PCB footprint - Resistors, Axial Diameter Horizontal Mounting - Resistors, Axial Diameter Horizontal Mounting - FRM50S
click to zoom
3D Models
FRM50SJR-52-150R - Yageo Group - 3D model - Resistors, Axial Diameter Horizontal Mounting - FRM50S
click to zoom

FRM50SJR-52-150R Details

  • Manufacturer Part Number:

    FRM50SJR-52-150R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active Unconfirmed

  • Package Description:

    AXIAL LEADED

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China, Taiwan

  • ECCN Code:

    EAR99

  • Manufacturer:

    YAGEO Corporation

  • YTEOL:

    7

  • Additional Feature:

    FLAME PROOF, FUSING POWER: 25 TIMES RATED POWER

  • Construction:

    Cylindrical

  • Fusing Time:

    60 s

  • JESD-609 Code:

    e3

  • Lead Diameter:

    0.55 mm

  • Lead Length:

    28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    155 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Diameter:

    2.4 mm

  • Package Length:

    6.3 mm

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Packing Method:

    TR

  • Rated Power Dissipation (P):

    0.5 W

  • Rated Temperature:

    70 °C

  • Resistance:

    150 Ω

  • Resistor Type:

    FUSIBLE RESISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL FILM

  • Temperature Coefficient:

    200 ppm/°C

  • Terminal Finish:

    MATTE TIN

  • Terminal Shape:

    WIRE

  • Tolerance:

    5%

  • Working Voltage:

    200 V

FRM50SJR-52-150R Frequently Asked Questions (FAQs)

  • The recommended soldering temperature profile for FRM50SJR-52-150R is 260°C for 10 seconds, with a peak temperature of 240°C. However, it's always best to consult the YAGEO Corporation's soldering guidelines for the most up-to-date information.
  • Yes, FRM50SJR-52-150R is compatible with lead-free soldering. YAGEO Corporation's products are designed to meet the requirements of the RoHS directive, which restricts the use of certain hazardous substances, including lead.
  • The MSL of FRM50SJR-52-150R is MSL 2, which means it can withstand exposure to moisture for up to 4 days at 30°C and 60% relative humidity without requiring baking before reflow soldering.
  • Yes, FRM50SJR-52-150R is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the component's self-resonant frequency, parasitic inductance, and capacitance when designing high-frequency circuits.
  • The operating temperature range of FRM50SJR-52-150R is -55°C to 125°C. However, the component's electrical characteristics may vary outside the recommended operating temperature range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FRM50SJR-52-150R Overview

Use the download button to access the FRM50SJR-52-150R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FRM50, or try a keyword search, such as Fusible Resistors
