A good PCB layout for the FRSTB1027 should ensure minimal parasitic inductance and capacitance. Keep the input and output traces short and separate, and use a solid ground plane to reduce noise. A 4-layer PCB with a dedicated power plane and a separate ground plane is recommended.
The input capacitor should be selected based on the input voltage ripple requirement and the output voltage rating. A general rule of thumb is to choose a capacitor with a capacitance value of 10uF to 22uF, and a voltage rating of 1.5 to 2 times the input voltage. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
The maximum ambient temperature for the FRSTB1027 is 85°C, but it's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation. A temperature derating curve can be found in the datasheet.
Yes, the FRSTB1027 is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow the recommended PCB layout, thermal management, and component selection guidelines to ensure the device meets the required reliability and performance standards.
To troubleshoot issues with the FRSTB1027, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout for any signs of damage, overheating, or poor soldering. Use an oscilloscope to monitor the output voltage and current waveforms. Consult the datasheet and application notes for guidance on troubleshooting and fault diagnosis.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FRSTB1027 Overview

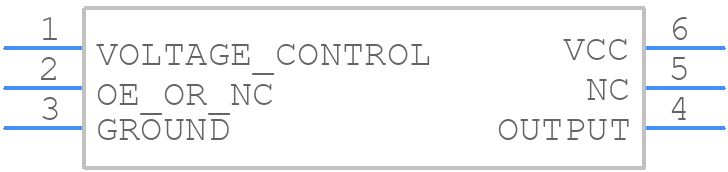

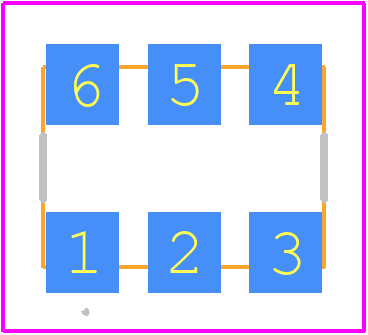

Use the download button to access the FRSTB1027 schematic symbol, PCB footprint, and 3D model.
