CURRENT LIMIT; OVER VOLTAGE; THERMAL; SHORT CIRCUIT
Ripple Voltage (Main Out):
1.7675 Vrms
Seated Height-Max:
13.21 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Width:
28.5 mm
FS05CT-12 Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the FS05CT-12 is designed to withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range, and 1.5 mm peak-to-peak amplitude. However, it's recommended to consult XP Power's application notes for specific vibration testing and mounting recommendations.
To ensure EMC, XP Power recommends following their application notes for proper PCB layout, grounding, and shielding. Additionally, the module should be installed in a metal enclosure with a minimum of 1 mm thickness to reduce electromagnetic radiation.
The maximum allowable capacitance for the output filter is 10 μF. Exceeding this value may affect the module's stability and performance.
Yes, the FS05CT-12 can be used in a redundant or parallel configuration, but it's essential to follow XP Power's application notes for specific guidelines on synchronization, current sharing, and fault tolerance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS05CT-12 Overview

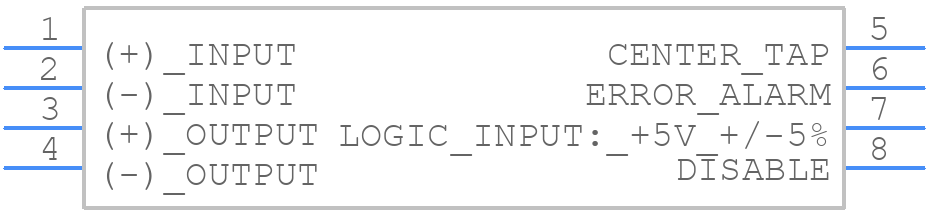

Use the download button to access the FS05CT-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS05C,
or try a keyword search, such as Other Signal Circuits
