FS10-250-C2 - Triad Magnetics

Description: Power Transformers POWER XFMR 10 Vct @ 250 mA UL/cUL - Class 2, TUV, 115/230V SPLIT PACK PCB MOUNT / FS10-250-C2

Download FS10-250-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS10-250-C2 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

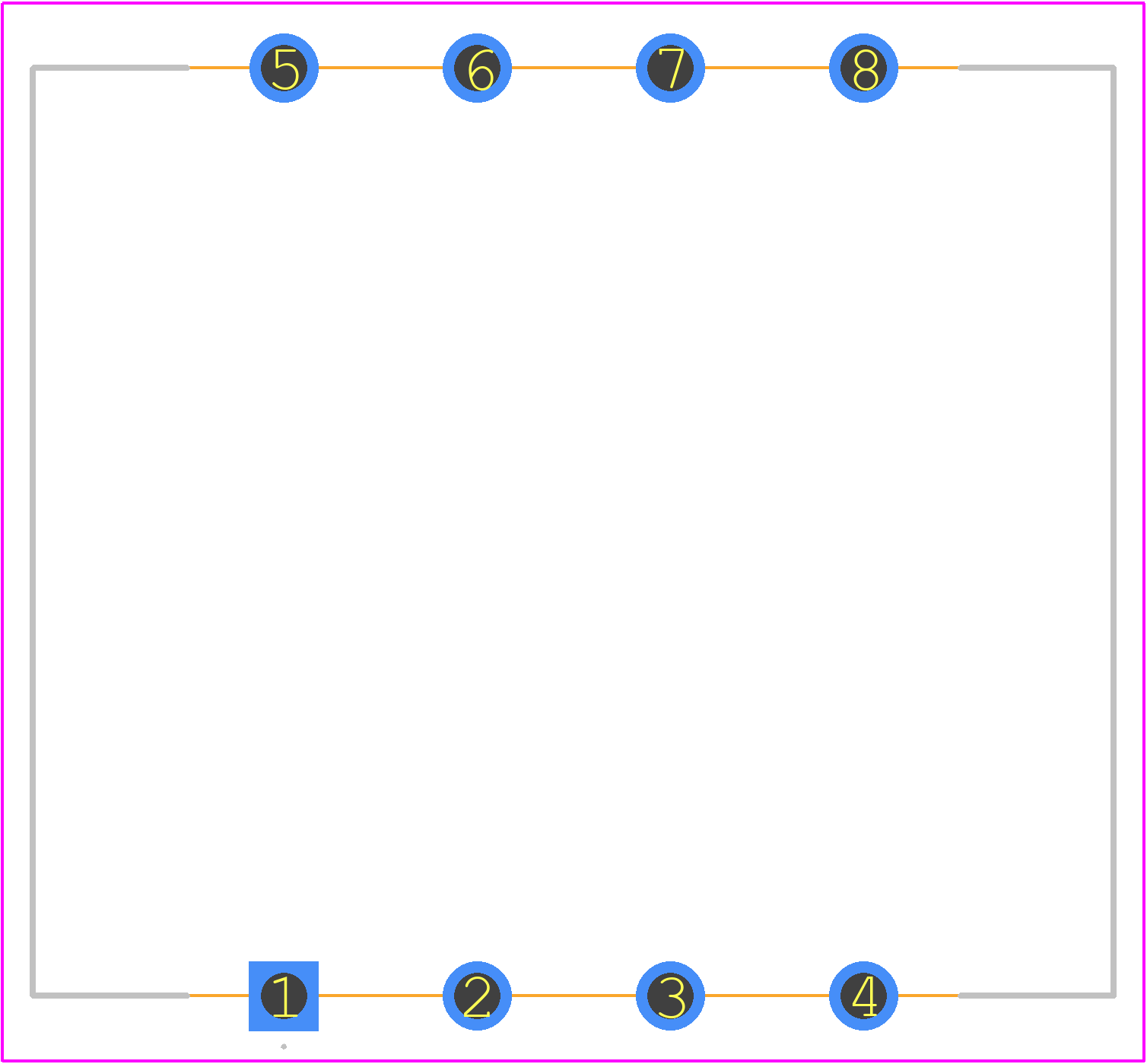

FS10-250-C2 - Triad Magnetics PCB footprint - Other - Other - FS10-250-C2-2
click to zoom
3D Models
FS10-250-C2 - Triad Magnetics - 3D model - Other - FS10-250-C2-2
click to zoom

FS10-250-C2 Details

  • Manufacturer Part Number:

    FS10-250-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS10-250-C2 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS10-250-C2 is 50-400 Hz, although it can operate up to 1 kHz with reduced performance.
  • Yes, the FS10-250-C2 can be used in a switching power supply, but it's essential to ensure that the switching frequency is within the recommended range and that the transformer is properly designed and tested for the specific application.
  • The maximum ambient temperature for the FS10-250-C2 is 130°C, with a maximum temperature rise of 60°C above ambient.
  • While the FS10-250-C2 is a high-quality transformer, it may not meet the specific requirements for high-reliability or military applications. Triad Magnetics offers other products that are specifically designed and tested for these types of applications.
  • Yes, Triad Magnetics offers customization options for the FS10-250-C2, including custom windings, terminations, and packaging. Contact Triad Magnetics directly for more information.
