Part Image

FS10-250 - Triad Magnetics

Description: Power Transformers POWER XFMR 10.0Vct@0.250A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS10-250

Download FS10-250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

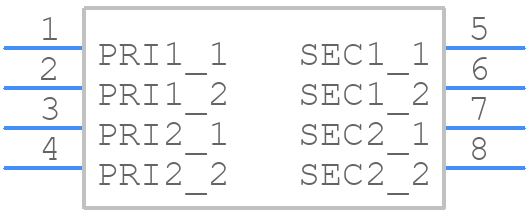

Symbol
FS10-250 - Triad Magnetics - PCB symbol
click to zoom

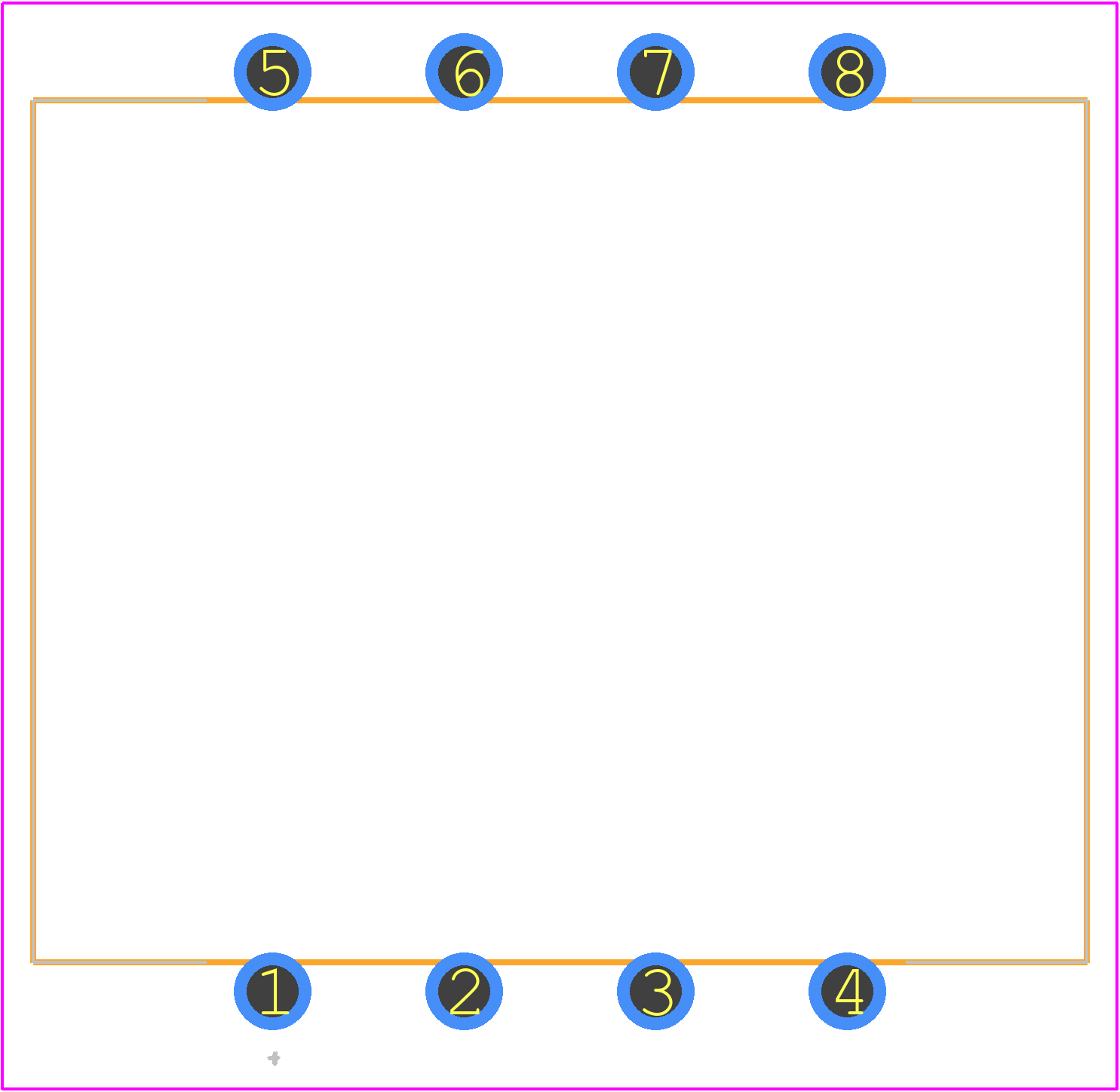

PCB Footprints
FS10-250 - Triad Magnetics PCB footprint - Other - Other - FS10-250-2
click to zoom
3D Models
FS10-250 - Triad Magnetics - 3D model - Other - FS10-250-2
click to zoom

FS10-250 Details

  • Manufacturer Part Number:

    FS10-250

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    30.16 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.5 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    2.5 VA

  • Width:

    28.58 mm

FS10-250 Frequently Asked Questions (FAQs)

  • The recommended operating frequency range for the FS10-250 is 50-400 Hz, although it can operate up to 1 kHz with reduced performance.
  • Yes, the FS10-250 is suitable for switching power supply applications, but it's essential to ensure that the operating frequency and voltage ratings are within the transformer's specifications.
  • The maximum ambient temperature rating for the FS10-250 is 130°C, with a maximum temperature rise of 60°C above ambient.
  • While the FS10-250 is a high-quality transformer, it is not specifically designed for high-reliability or military applications. For such applications, Triad Magnetics offers other products that meet the relevant standards and requirements.
  • Yes, Triad Magnetics offers customization options for the FS10-250, including custom windings, terminations, and packaging. Contact Triad Magnetics directly for more information.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS10-250 Overview

Use the download button to access the FS10-250 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS10-, or try a keyword search, such as Power/Mains Transformers
