CURRENT LIMIT; OVER VOLTAGE; THERMAL; SHORT CIRCUIT
Ripple Voltage (Main Out):
1.7675 Vrms
Seated Height-Max:
13.21 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
UNSPECIFIED
Terminal Position:
UNSPECIFIED
Total Power Output-Max:
10 W
Trim/Adjustable Output:
YES
Width:
28.5 mm
FS10CT-12 Frequently Asked Questions (FAQs)
XP Power recommends a PCB layout with a large copper area connected to the module's thermal pad to dissipate heat efficiently. A minimum of 1 oz copper thickness is recommended, and the copper area should be at least 1 inch x 1 inch in size.
Yes, the FS10CT-12 is designed to withstand vibrations up to 10G peak acceleration, 10-2000 Hz frequency range, and 1.5 mm peak-to-peak amplitude. However, it's recommended to follow XP Power's guidelines for mounting and securing the module to ensure reliable operation.
To ensure EMC, XP Power recommends following their guidelines for PCB layout, component placement, and shielding. Additionally, the module should be installed in a metal enclosure with a minimum thickness of 0.5 mm, and the input and output cables should be properly shielded and routed.
The maximum allowable capacitance for the output filter capacitor is 47 μF. Exceeding this value may affect the module's stability and performance.
Yes, the FS10CT-12 can be used in a redundant configuration, but it's essential to follow XP Power's guidelines for paralleling and redundancy to ensure reliable operation and avoid damage to the modules.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
FS10CT-12 Overview

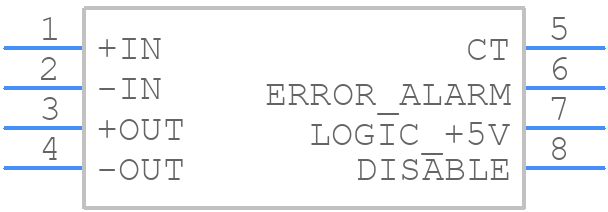

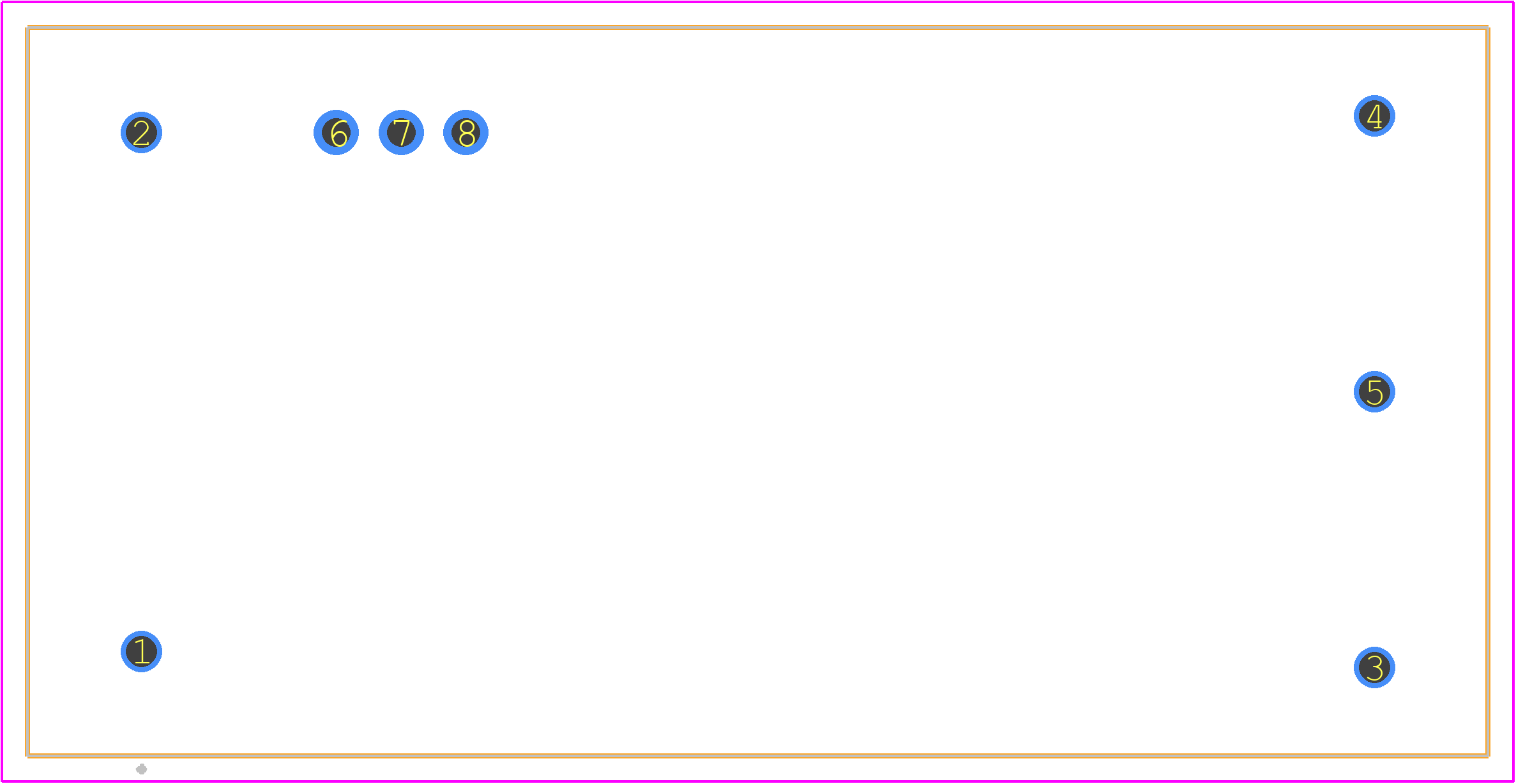

Use the download button to access the FS10CT-12 schematic symbol, PCB footprint, and 3D model.
