Part Image

FS12-090-C2 - Triad Magnetics

Description: Power Transformers Power Transformer, PC Mount, Class 2/3, 8Pin, 1.1 V A, 6.3/12.6VDC (Nominal Secondary) Output, Primary Input, 12.6VDC CT at 0.09A Secondary in Series, 6.3VDC at 0.18A Secondary in Parallel

Download FS12-090-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS12-090-C2 - Triad Magnetics - PCB symbol
click to zoom

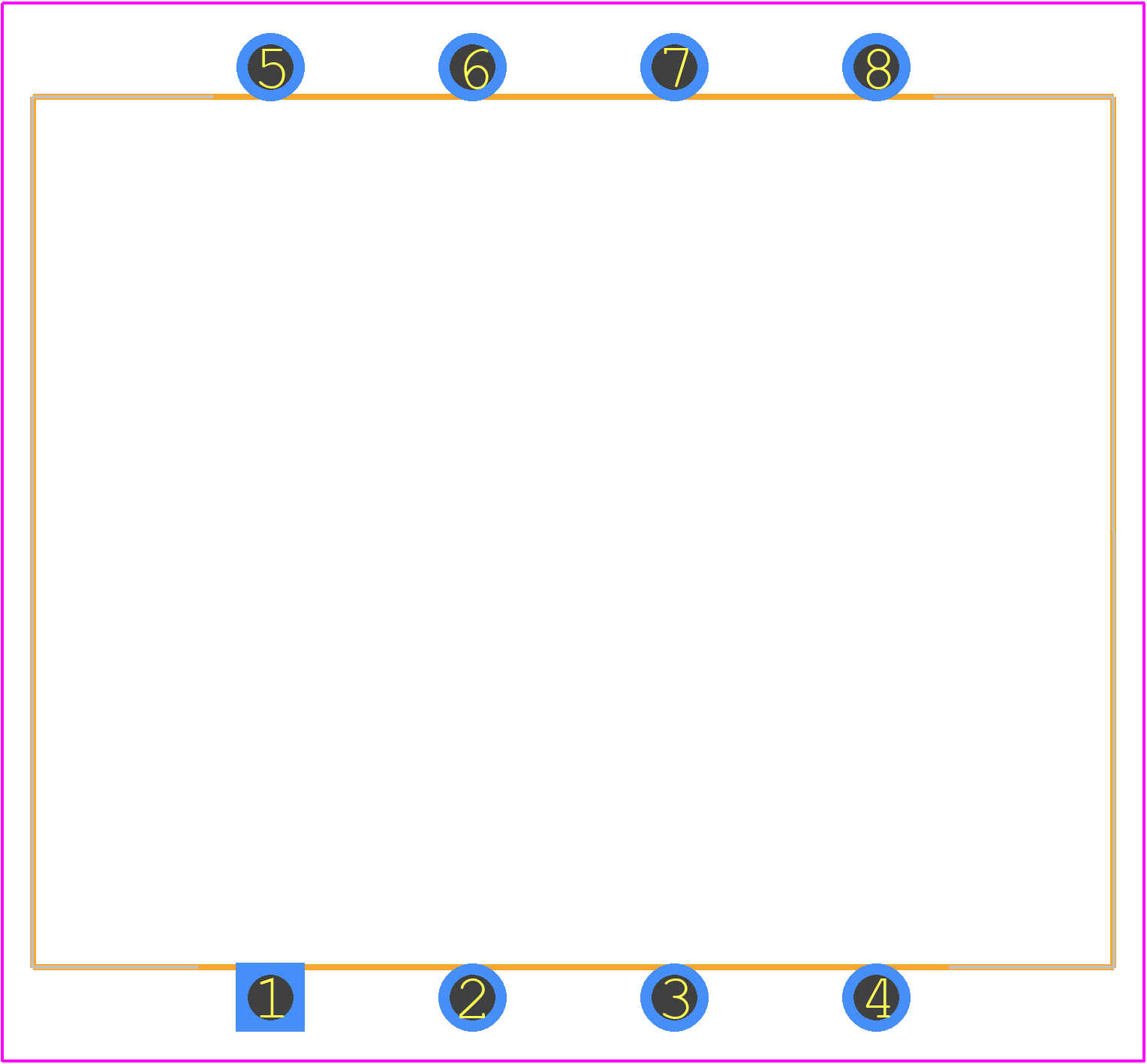

PCB Footprints
FS12-090-C2 - Triad Magnetics PCB footprint - Other - Other - FS12-090-C2-1
click to zoom
3D Models
FS12-090-C2 - Triad Magnetics - 3D model - Other - FS12-090-C2-1
click to zoom

FS12-090-C2 Details

  • Manufacturer Part Number:

    FS12-090-C2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.18 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

FS12-090-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FS12-090-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, the FS12-090-C2 is designed to withstand high-vibration environments, but it's recommended to follow Triad Magnetics' guidelines for vibration testing and to ensure proper mounting and securing of the transformer.
  • The FS12-090-C2 meets various safety certifications, including UL, cUL, and CE. Ensure you follow Triad Magnetics' guidelines for safety certification and compliance for your specific application.
  • Triad Magnetics recommends following their application notes for PCB layout and spacing guidelines to ensure optimal performance and thermal management of the FS12-090-C2.
  • The FS12-090-C2 is designed to operate in a relative humidity range of 5% to 95%. However, it's recommended to follow Triad Magnetics' guidelines for humidity testing and to ensure proper sealing and conformal coating for high-humidity applications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS12-090-C2 Overview

Use the download button to access the FS12-090-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS12-, or try a keyword search, such as Power/Mains Transformers
