FS12-090 - Triad Magnetics

Description: Power Transformers POWER XFMR 12.6Vct@0.090A UL/cUL 115/230V SPLIT PACK PCB MOUNT/FS12-090:

Download FS12-090 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
FS12-090 - Triad Magnetics - PCB symbol
click to zoom
PCB Footprints

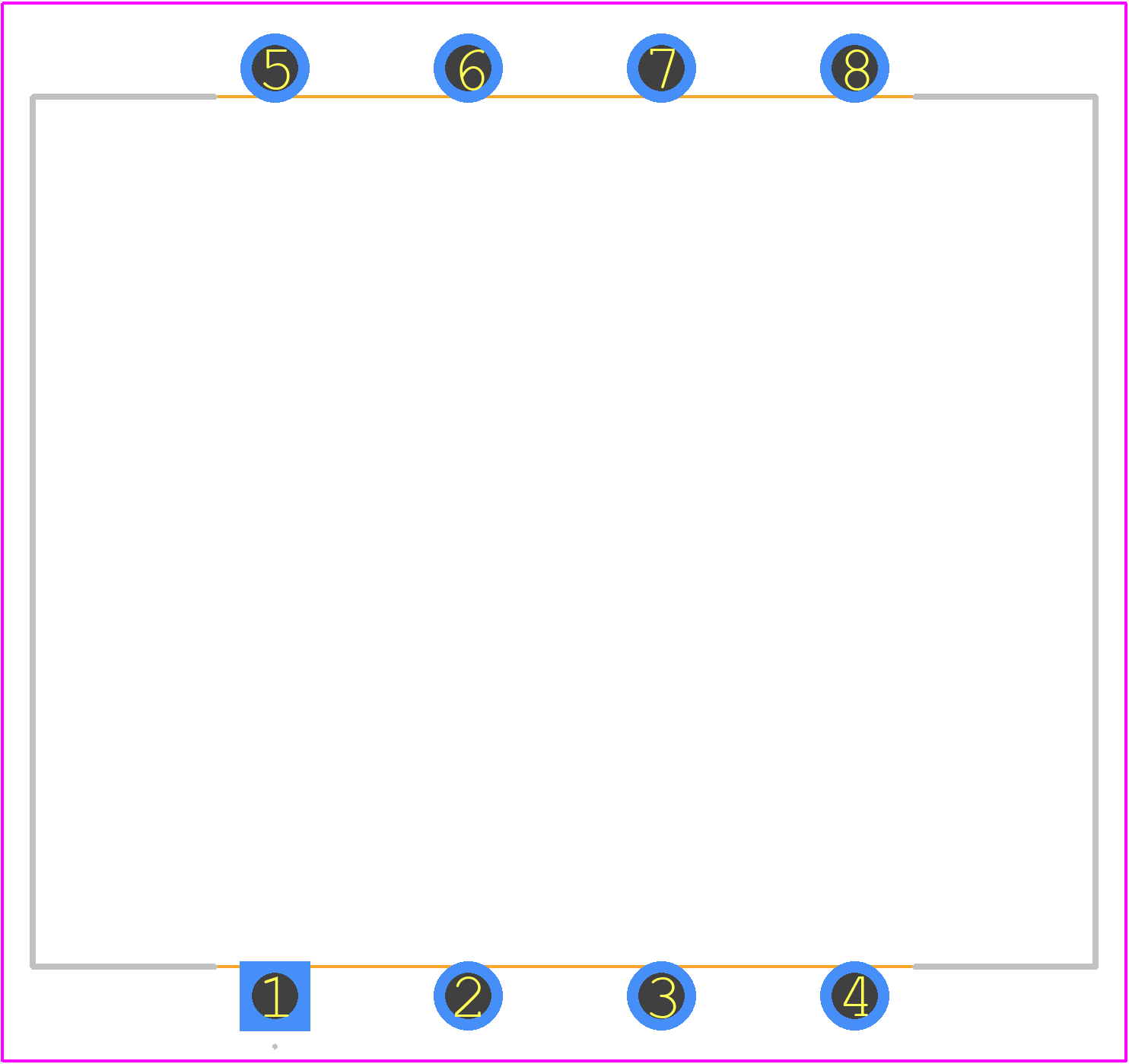

FS12-090 - Triad Magnetics PCB footprint - Other - Other - FS12-090-1
click to zoom
3D Models
FS12-090 - Triad Magnetics - 3D model - Other - FS12-090-1
click to zoom

FS12-090 Details

  • Manufacturer Part Number:

    FS12-090

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    230 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.18 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    DUAL 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

FS12-090 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the FS12-090 is -40°C to 125°C, although it can withstand storage temperatures up to 150°C.
  • Yes, the FS12-090 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • The maximum allowable DCR for the FS12-090 is 0.25 ohms, although the typical DCR is around 0.15 ohms.
  • Yes, the FS12-090 is designed to operate in humid environments, with a humidity rating of 95% RH at 40°C.
  • Yes, the FS12-090 is designed to handle high surge currents, with a surge current rating of 100 A for 1 second.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

FS12-090 Overview

Use the download button to access the FS12-090 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like FS12-, or try a keyword search, such as Power/Mains Transformers
